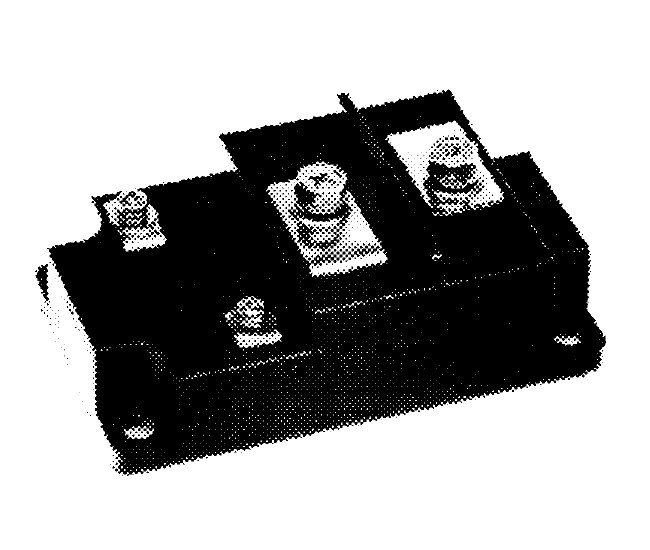

KS624530-E Powerex - Power Transistor Module

KS624530-E Description

KS624530-E is a 600 V / 300 A single Darlington transistor module from Powerex. Typical applications: inverters, DC motor control, switching power supplies and AC motor control.

USComponent supplies KS624530-E and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Powerex KS624530-E is used for Inverters, DC motor control, switching power supplies and AC motor control.

Key Specifications

KS624530-E is a 600 V / 300 A single Darlington transistor module from Powerex. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Powerex
Configuration	Single Darlington with reverse parallel fast recovery diode and base-emitter speed-up diode
Collector-emitter voltage	VCEV 600 V; VCEO(sus) 450 V
Collector current (IC)	300 A
Diode forward current (IFM)	300 A; surge 3000 A
Power dissipation (Pt)	1380 W
DC current gain (hFE)	75 min. at 300 A, VCE = 2.8 V
VCE(sat)	2.0 V max. at 300 A, IB = 4 A
Diode forward voltage (VFM)	1.85 V max. at 300 A
Switching times (max.)	ton 2.5 µs, ts 12 µs, tf 3.0 µs
Thermal resistance Rth(j-c)	0.09 °C/W transistor, 0.3 °C/W diode
Isolation voltage	2000 V RMS
Weight	460 g typ.
Datasheet	Available on this page (PDF)

Note: data taken from the Powerex datasheet of KS624530. KS624530-E is the same part with a suffix that does not change the electrical ratings.
