KS524505 Powerex - Bipolar Transistor Module

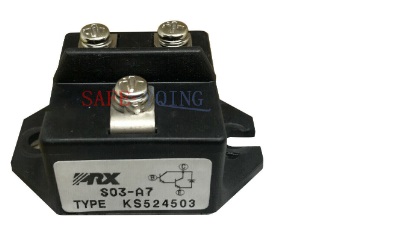

KS524505 Description

Powerex makes the KS524505, a 600 V, 50 A Darlington transistor module. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the KS524505 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Powerex KS524505 is used for AC Motor Control, DC Motor Control, Switching Power Supplies and Inverters.

Key Specifications

KS524505 is a 600 V / 50 A Darlington transistor module from Powerex. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Powerex
Product type	Darlington transistor module
Configuration	Single Darlington with reverse-parallel high-speed diode and base-emitter speed-up diode
Collector-emitter sustaining voltage (VCEO(sus))	450 V
Collector-emitter voltage (VCEV)	600 V
Continuous collector current (IC)	50 A
Diode surge current (IFSM)	500 A
DC current gain (hFE)	75 min (IC = 50 A, VCE = 2 V); 100 min (IC = 50 A, VCE = 5 V)
Collector-emitter saturation voltage (VCE(sat))	2.0 V max (IC = 50 A, IB = 0.65 A)
Power dissipation (Pt)	310 W
Isolation voltage (VRMS)	2000 V
Junction temperature (Tj)	-40 to 150 °C
Datasheet	Available on this page (PDF)

KS524505 Video

Technical document (PDF)  |  Request a quote for KS524505 (reply within 24 hours)
