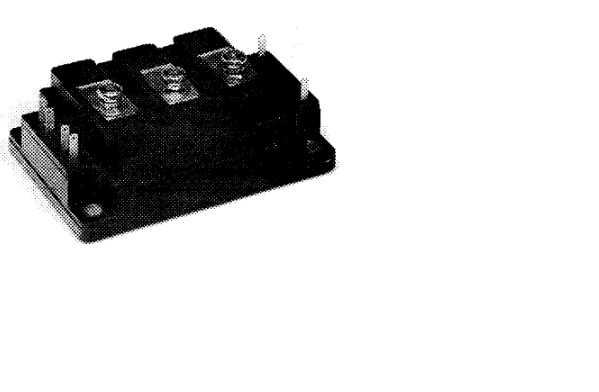

KD424520Powerex - Dual Darlington Power Transistor Module

KD424520 Description

The Powerex KD424520 is a Darlington transistor module rated at 600 V and 200 A. Dual Darlington Transistor Module (200 Amperes/600 Volts) BJT NPN Dual Darlington Transistor Darlington Half Bridge Power Module - Visolation 2.5kV(RMS). Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the KD424520.

Summary of Features

Target Applications

Powerex KD424520 is used for AC Motor Control, DC Motor Control, Switching Power Supplies, Inverters.

Key Specifications

Manufacturer	Powerex
Category	Dual Darlington Power Transistor Module
Rated voltage	600 V
Rated current	200 A

Download KD424520 Datasheet

KD424520 PDF Datasheet
