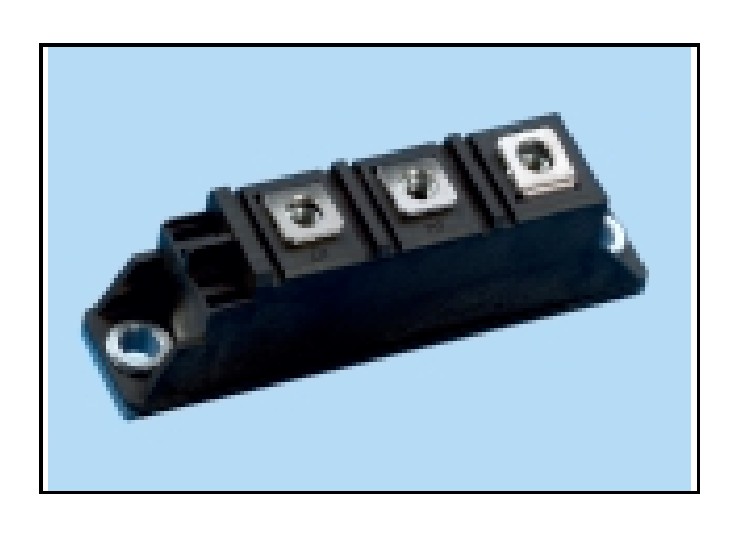

CD411699 Powerex - Diode Module

CD411699 Description

CD411699 is a 1600 V, 100 A diode module made by Powerex. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Need the CD411699? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Powerex CD411699 is used for Power Supplies, Bridge Circuits, AC & DC Motor Drives, Battery Supplies, Large IGBT Circuit Front Ends, Lighting Control, Heat & Temperature Control and Welders.

Key Specifications

CD411699 is a 1,600 V, 99 A dual SCR module (POW-R-BLOK). Source: manufacturer datasheet.

Parameter	Value
Product type	Dual SCR module (POW-R-BLOK)
Repetitive peak voltage (VDRM / VRRM)	1,600 V
Rated on-state current	99 A
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CD411699 (reply within 24 hours)
