PD130F80 NIEC - Thyristor / Diode Module

PD130F80 Description

The PD130F80 from Nihon Inter (NIEC) is a thyristor module with an 800 V / 130 A rating. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the PD130F80; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

NIEC PD130F80 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	SanRex
Configuration	Thyristor / diode module (PD type: thyristor + diode)
VRRM / VDRM	800 V
VRSM	960 V
IT(AV)	130 A
IT(RMS)	205 A
ITSM	4400 A
I²t	8 x 10⁴ A²s
Isolation voltage	2500 V (AC RMS, 1 min)
Terminal torque	M8: 8.8 - 10 N·m recommended

PD130F80 Video

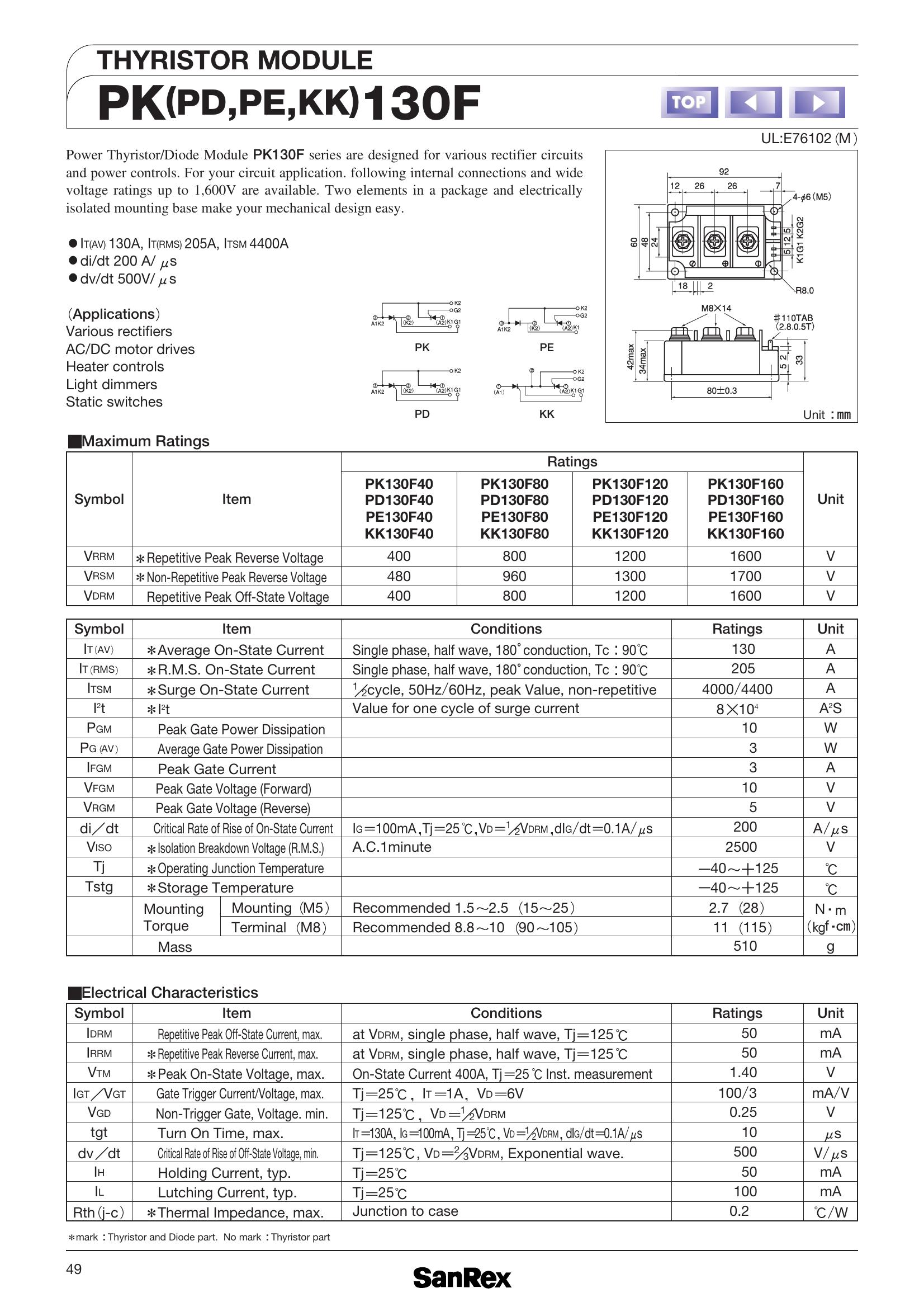

Technical document (PDF)  |  Request a quote for PD130F80 (reply within 24 hours)
