RM50TC-24Mitsubishi - Intelligent Power Module

RM50TC-24 Description

The Mitsubishi Electric RM50TC-24 is a diode module rated at 1200 V and 150 A. This type of device is widely used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM50TC-24.

Summary of Features

Target Applications

Mitsubishi RM50TC-24 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

RM50TC-24 is a 1,200 V, 50 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Repetitive peak reverse voltage (VRRM)	1,200 V
Rated forward / output current	50 A
Datasheet	Available on this page (PDF)

Download RM50TC-24 Datasheet

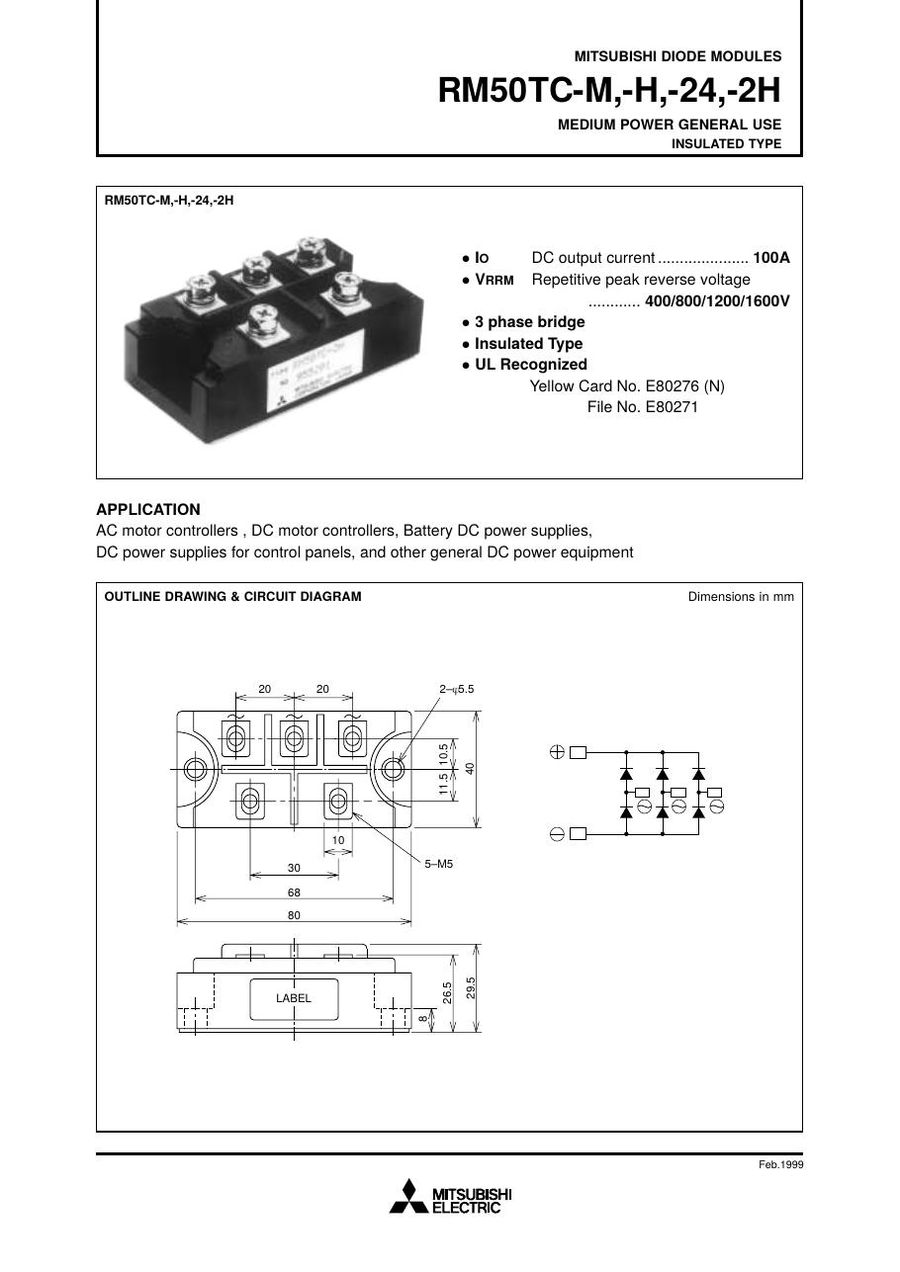

RM50TC-24 PDF Datasheet
