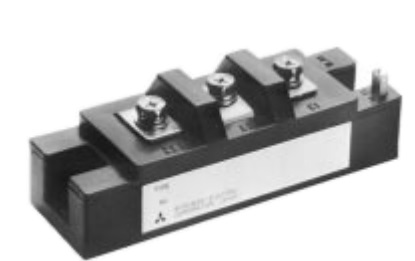

QM75E2Y-HDMitsubishi - Power Transistor Module

QM75E2Y-HD Description

The Mitsubishi Electric QM75E2Y-HD is a Darlington transistor module rated at 500 V and 75 A, available from USComponent. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM75E2Y-HD.

Target Applications

Mitsubishi QM75E2Y-HD is used for General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for CNC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for Welding Machines.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Power Transistor Module
Rated voltage	500 V
Rated current	75 A

QM75E2Y-HD Video

Download QM75E2Y-HD Datasheet

Datasheet not available
