QM600HD-M Mitsubishi - Bipolar Transistor Module

QM600HD-M Description

Mitsubishi Electric makes the QM600HD-M, a Darlington transistor module. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

Request a quote for the QM600HD-M and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Mitsubishi QM600HD-M is used for Robotics, Forklifts and Welder.

Key Specifications

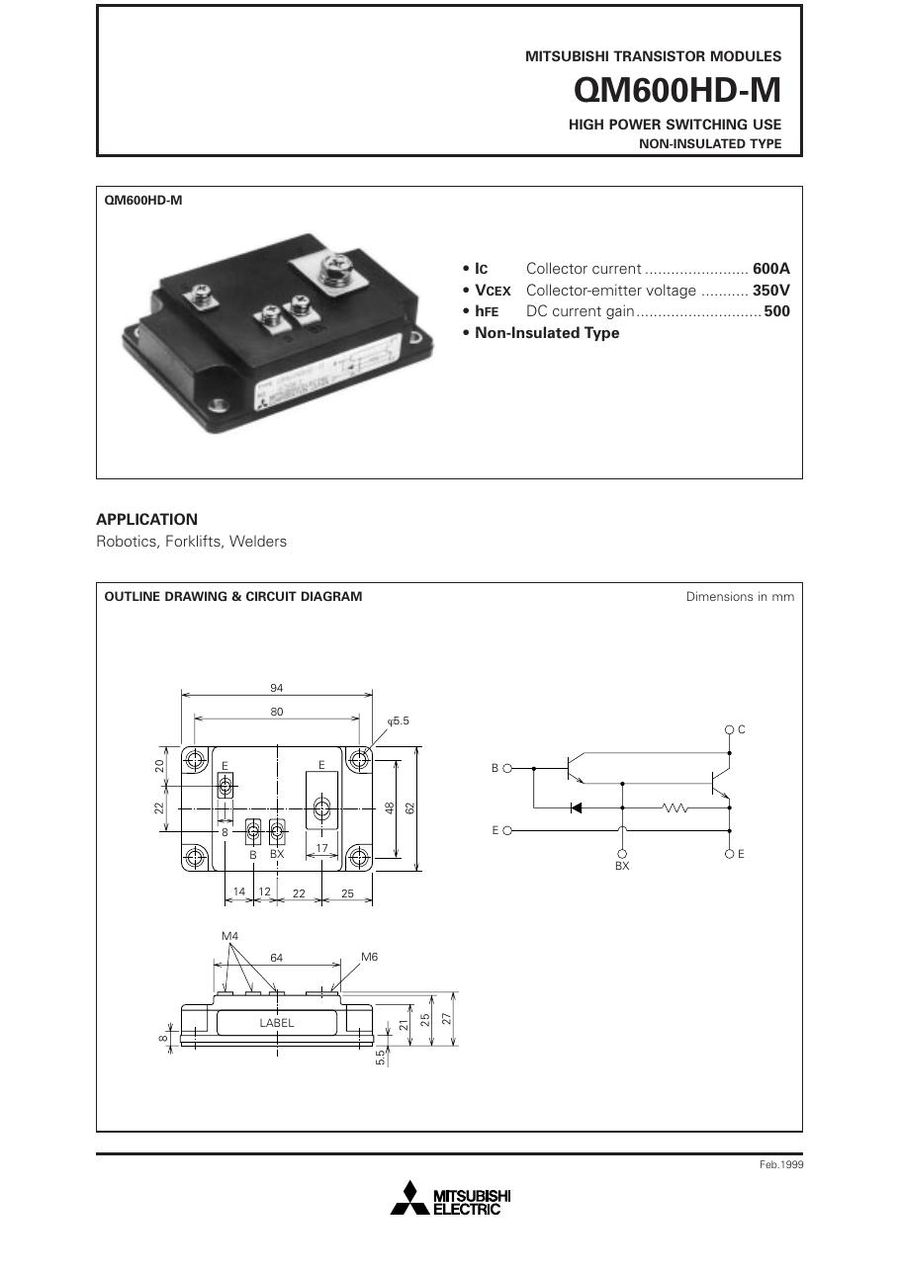

QM600HD-M is a 350 V / 600 A Darlington transistor module from Mitsubishi Electric. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Darlington transistor module
Configuration	Single (Darlington)
Package	Non-insulated type
Collector-emitter voltage (VCEX)	350 V (VEB = 2 V)
Collector-base voltage (VCBO)	400 V
Collector current (IC)	600 A (DC)
Collector-emitter saturation voltage (VCE(sat))	2.0 V max (IC = 600 A, IB = 1.2 A)
DC current gain (hFE)	500 min (IC = 600 A, VCE = 2 V)
Collector dissipation (PC)	2080 W (TC = 25 °C)
Base current (IB)	15 A (DC)
Junction temperature (Tj)	-40 to +150 °C
Datasheet	Available on this page (PDF)
