QM5HG-24 Mitsubishi - Bipolar Transistor Module

QM5HG-24 Description

The QM5HG-24 from Mitsubishi Electric is a Darlington transistor module with a 1200 V / 5 A rating. Modules of this type were widely used in motor drives, UPS units and power supplies, and many are still running in older equipment today.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the QM5HG-24, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi QM5HG-24 is used for base drive circuits of high-voltage transistor modules.

Key Specifications

Mitsubishi QM5HG-24 is a 1,200 V, 5 A non-insulated transistor module for medium power switching. Source: Mitsubishi QM5HG-24 datasheet.

Parameter	Value
Product type	Bipolar transistor module, non-insulated type
Use	Medium power switching
Collector-emitter voltage (VCEX)	1,200 V
Collector current (IC, DC)	5 A
DC current gain (hFE, min)	5
Collector dissipation (PC, TC = 25 °C)	100 W
Junction temperature	-40 to +150 °C
Weight (typ)	5 g

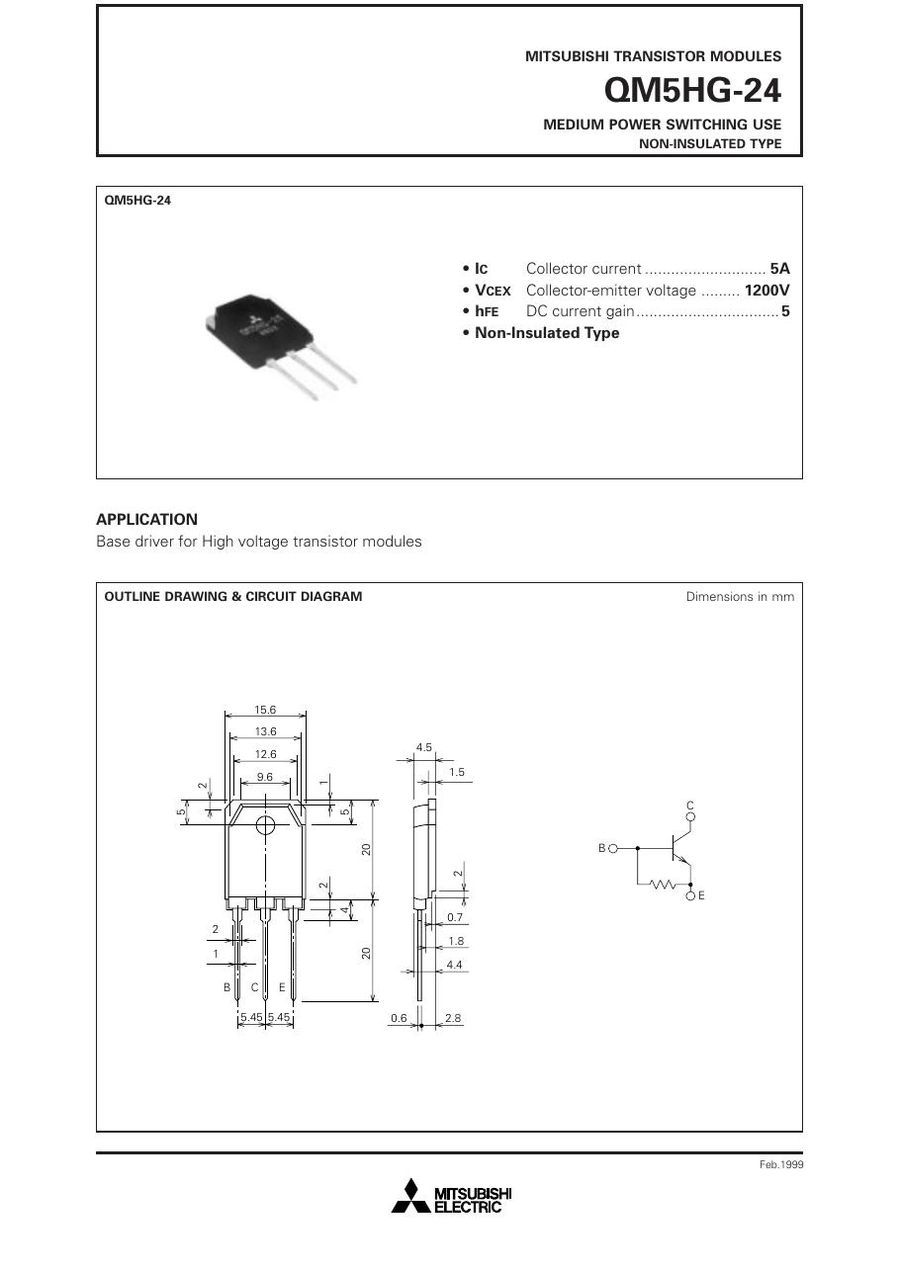

Datasheet	Available on this page (PDF)
