QM20KD-HB Mitsubishi - Power Transistor Module

Category: Darlington / Bipolar Transistor Modules

Specifications: 600V, 20A

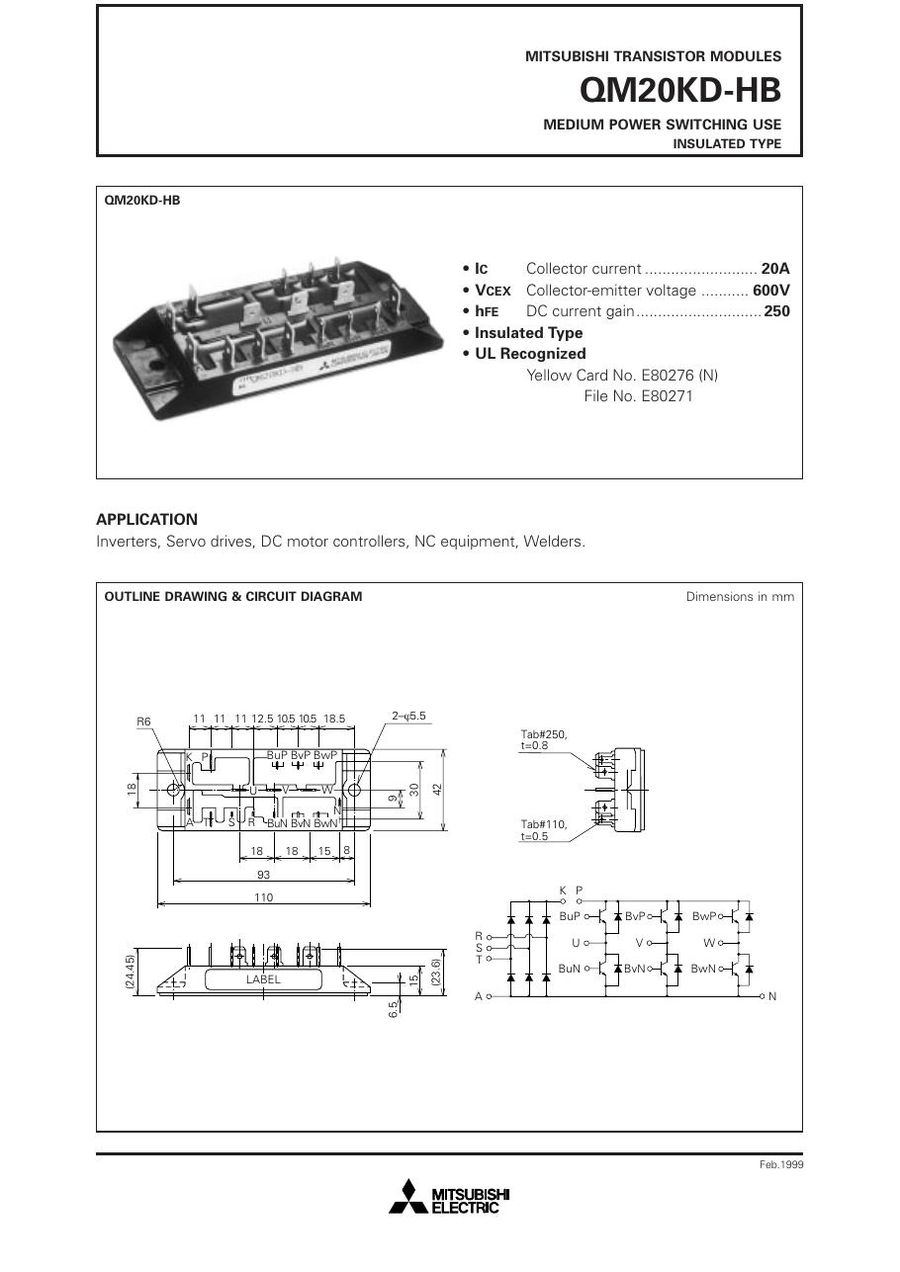

QM20KD-HB, Mitsubishi, Power Transistor Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

QM20KD-HB Description

Mitsubishi Electric QM20KD-HB is a Darlington transistor module rated at 600 V and 20 A. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the QM20KD-HB, and please confirm ratings against the datasheet before ordering.

Summary of Features

QM20KD-HB is a 20 A power transistor (bipolar Darlington) module.

Target Applications

Mitsubishi QM20KD-HB is used for Inverters, Servo Drives, DC Motor Controllers, CVCF, NC Equipment and Welders.

Key Specifications

QM20KD-HB is a 20 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

ParameterValue
Product typePower transistor (bipolar Darlington) module
Collector current (IC)20 A
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for QM20KD-HB (reply within 24 hours)

Related Part Numbers

QM15KD-HB
15A/600V		QM10KD-HB
600V, 10A		QM20HA-HB
600V, 20A		QM20TG-H
QM20BA-H
600V, 20A		QM20TB-H
600V, 20A		QM20TC-H
600V, 20A		QM20TD-H
600V, 20A
QM20KD1-HBQM200DY-24QM200DY-24BQM200DY-2H
QM200DY-2HBQM200DY-HQM200DY-H-KD424520QM200DY-HB
