QM200HA-24Mitsubishi - Power Transistor Module

QM200HA-24 Description

The Mitsubishi Electric QM200HA-24 is a Darlington transistor module rated at 1200 V and 200 A. HIGH POWER SWITCHING USE INSULATED TYPE APPLICATION AC motor controllers UPS CVCF DC motor controllers NC equipment Welders. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM200HA-24.

Summary of Features

Target Applications

Mitsubishi QM200HA-24 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

QM200HA-24 is a 200 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	200 A
Datasheet	Available on this page (PDF)

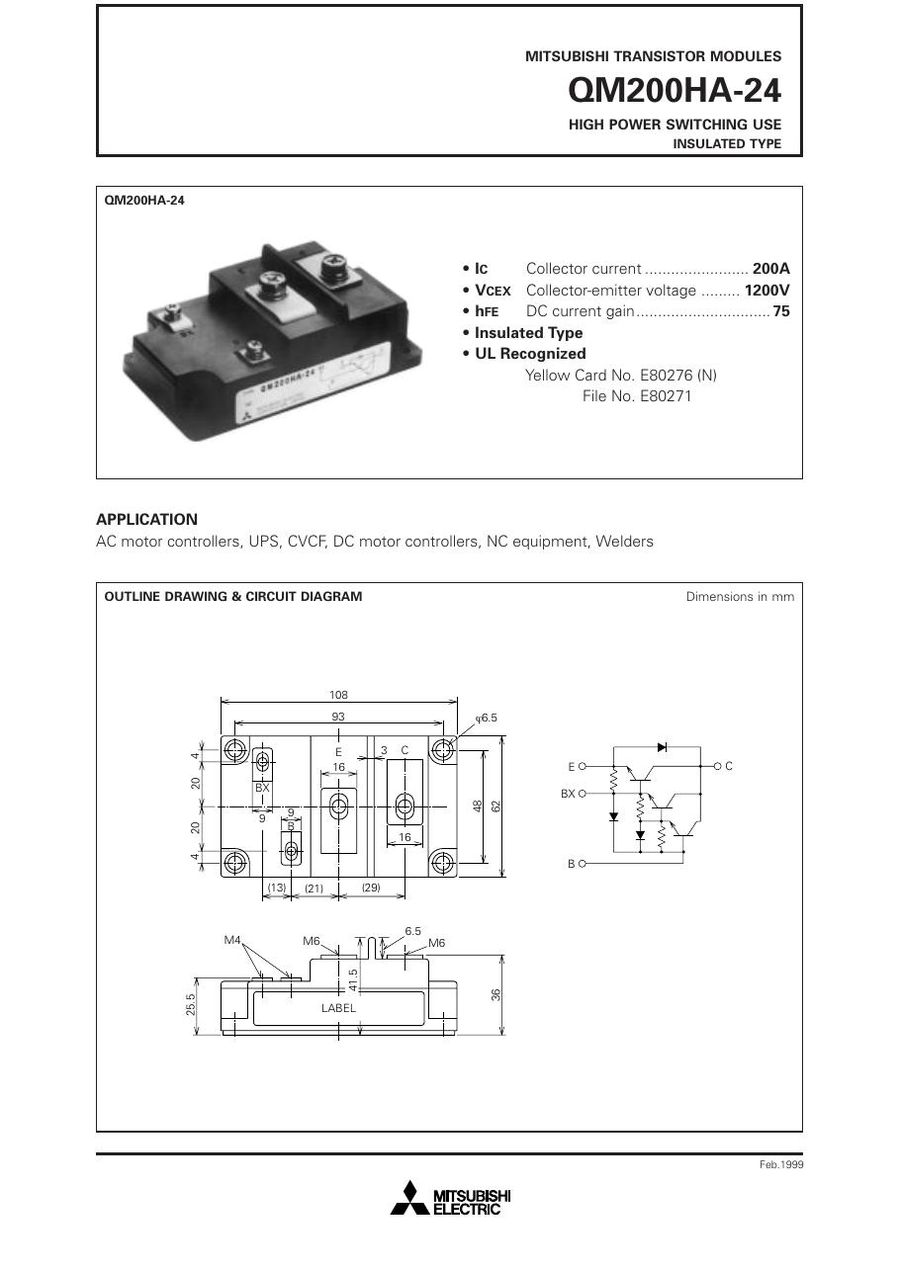

Download QM200HA-24 Datasheet

QM200HA-24 PDF Datasheet
