QM15HA-H Mitsubishi - Bipolar Transistor Module

QM15HA-H Description

Rated at 600 V, the Mitsubishi Electric QM15HA-H is a Darlington transistor module. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

Request a quote for the QM15HA-H and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

Target Applications

Mitsubishi QM15HA-H is used for inverters, servo drives, DC motor controllers, NC equipment and welders.

Key Specifications

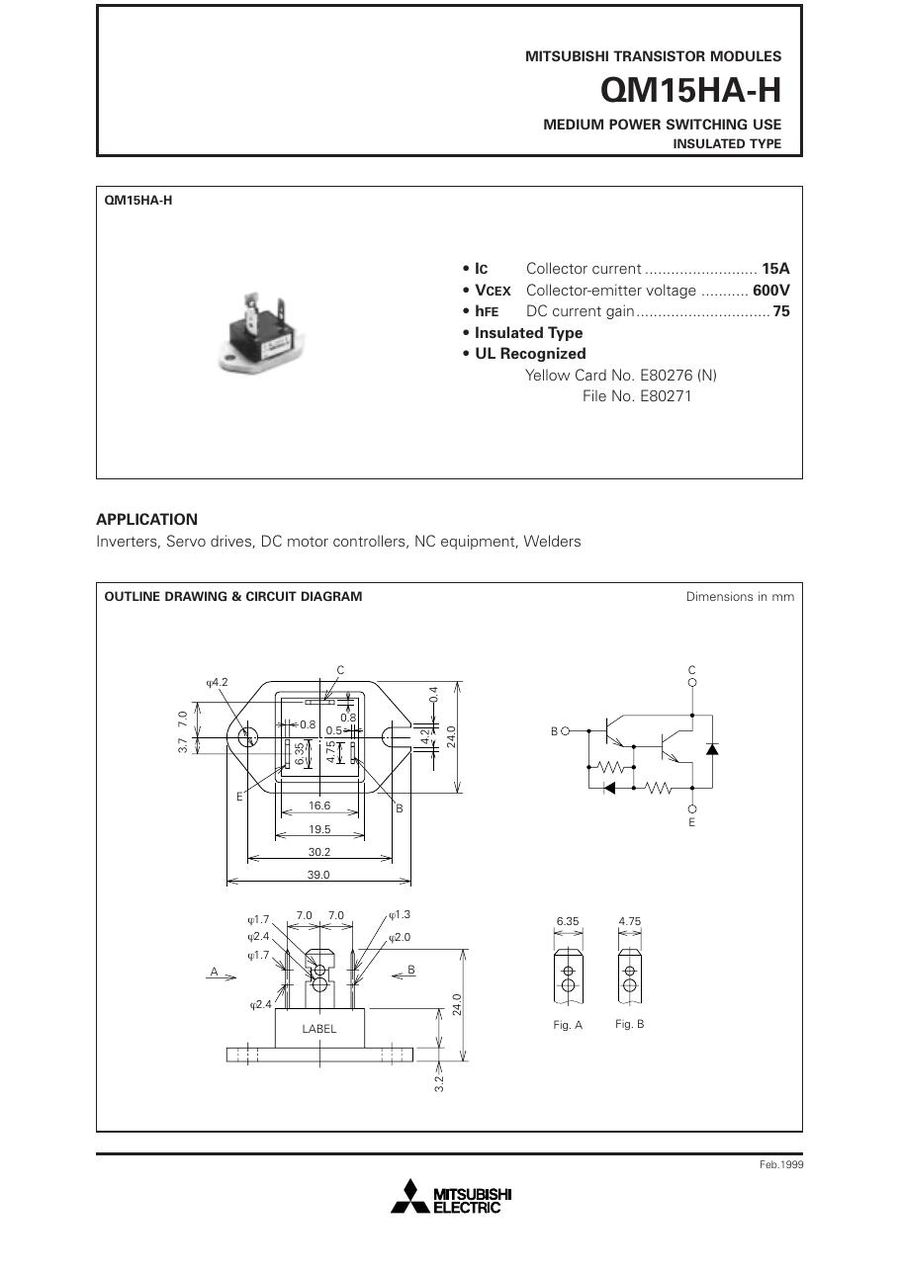

Mitsubishi QM15HA-H is a 600 V, 15 A insulated transistor module for medium power switching. Source: Mitsubishi QM15HA-H datasheet.

Parameter	Value
Product type	Bipolar transistor module, insulated type
Use	Medium power switching
Collector-emitter voltage (VCEX)	600 V
Collector current (IC, DC)	15 A
DC current gain (hFE, min)	75
Collector dissipation (PC, TC = 25 °C)	100 W
Isolation voltage	2,500 V AC, 1 min
Junction temperature	-40 to +150 °C
Weight (typ)	25 g
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for QM15HA-H (reply within 24 hours)
