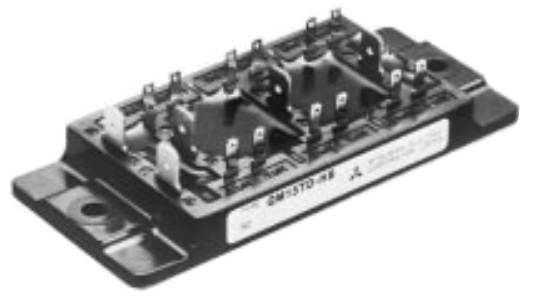

QM10TD-HBMitsubishi - Power Transistor Module

QM10TD-HB Description

The Mitsubishi Electric QM10TD-HB is a Darlington transistor module rated at 1000 V and 100 A. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM10TD-HB.

Target Applications

Mitsubishi QM10TD-HB is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Power Transistor Module
Rated voltage	1000 V
Rated current	100 A

Download QM10TD-HB Datasheet

Datasheet not available
