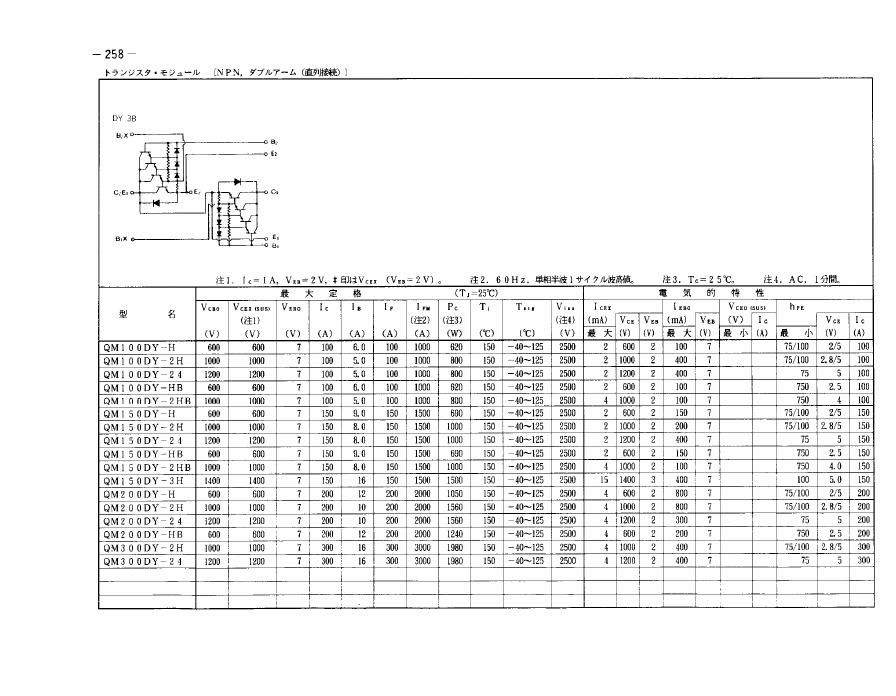

QM100DY-2HBMitsubishi - Power Transistor Module

QM100DY-2HB Description

The Mitsubishi Electric QM100DY-2HB is a Darlington transistor module, available from USComponent. MITSUBISHI TRANSISTOR MODULES HIGH POWER SWITCHING USE INSULATED TYPE Darlington Independent Power Module. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM100DY-2HB.

Summary of Features

Target Applications

Mitsubishi QM100DY-2HB is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

QM100DY-2HB is a 100 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	100 A
Datasheet	Available on this page (PDF)

Download QM100DY-2HB Datasheet

QM100DY-2HB PDF Datasheet
