PS21255-E Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 20A

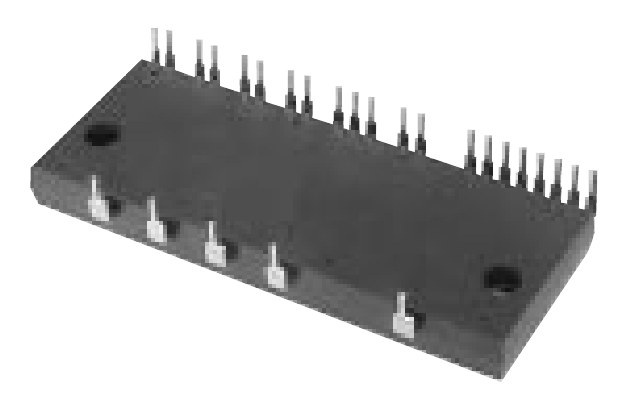

PS21255-E Mitsubishi Intelligent Power Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

PS21255-E Description

PS21255-E is a dual-in-line intelligent power module (DIP-IPM), 4th generation IGBT from Powerex / Mitsubishi, rated 600V, 20A. Typical applications: Washing machines, refrigerators, air conditioners, small servo motors and small motor control.

USComponent supplies PS21255-E and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Compact packages
  • Single power supply
  • Integrated HVICs
  • Direct connection to CPU
  • Optimized for 15 kHz operation

Target Applications

Mitsubishi PS21255-E is used for Washing machines, refrigerators, air conditioners, small servo motors and small motor control.

Key Specifications

PS21255-E is a dual-in-line intelligent power module (DIP-IPM), 4th generation IGBT from Powerex / Mitsubishi, rated 600V, 20A. Source: manufacturer datasheet.

ParameterValue
ManufacturerPowerex / Mitsubishi
Collector-emitter voltage600 V
Collector current20 A
Optimized PWM frequency15 kHz
PackageDual-in-line transfer-mold
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PS21255-E (reply within 24 hours)

Related Part Numbers

ps21245-ePS21244-E
600V, 15A		PS21205-EPS21444-E
600V, 15A
PS21446-EPS21454-E
600(V) / 15(A)		PS21254
600V, 15A		PS21246-AE
PS21255-AE
600V, 20A		PS21246-AFPPS21246-APS21245-B03
30V, 15A
PS21245-B02
600(V) / 20(A)		PS21245-B01
15(V) / 40(A)		PS21245-B
600(V) / 20(A)		PS21245-AP
15(V) / 40(A)
