PM600HHA060Mitsubishi - Intelligent Power Module

PM600HHA060 Description

The Mitsubishi Electric PM600HHA060 is an intelligent power module (IPM) rated at 600 V and 600 A. Typical applications for this type of device include compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM600HHA060.

Summary of Features

Target Applications

Mitsubishi PM600HHA060 is used for PM600HHA060, Mitsubishi, Power Transistor Module.

Key Specifications

PM600HHA060 is a 600 V, 600 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	600 A
Datasheet	Available on this page (PDF)

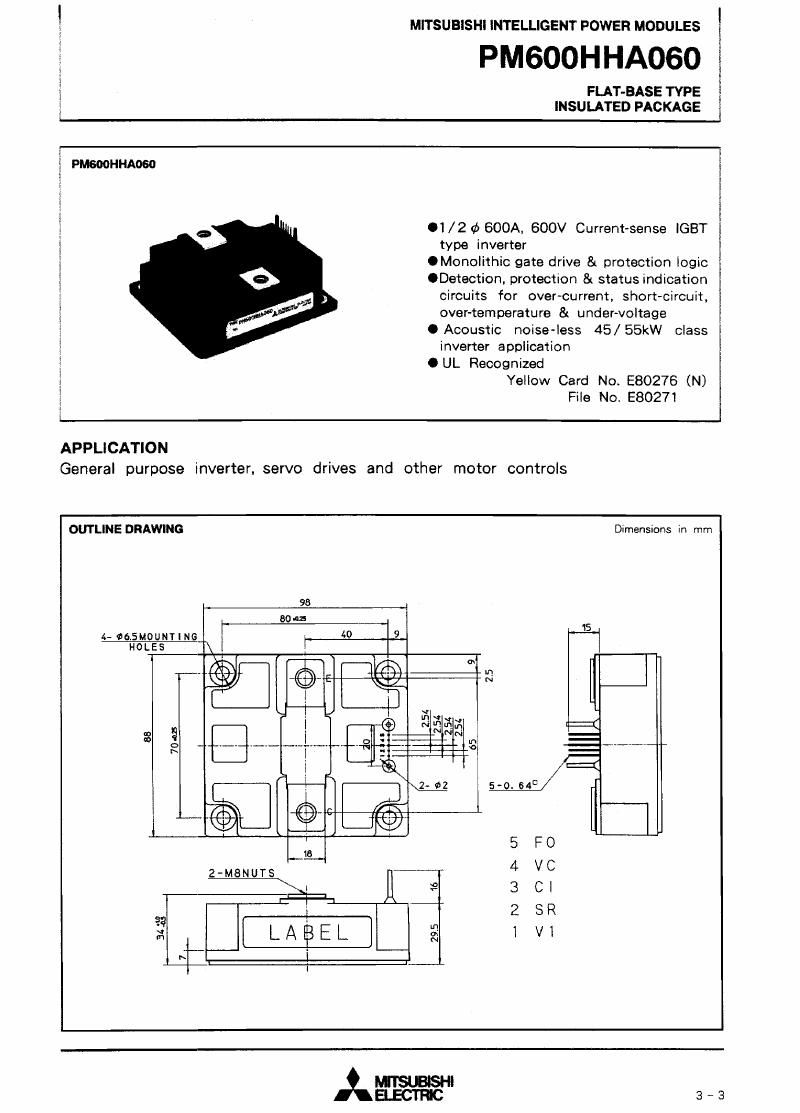

Download PM600HHA060 Datasheet

PM600HHA060 PDF Datasheet
