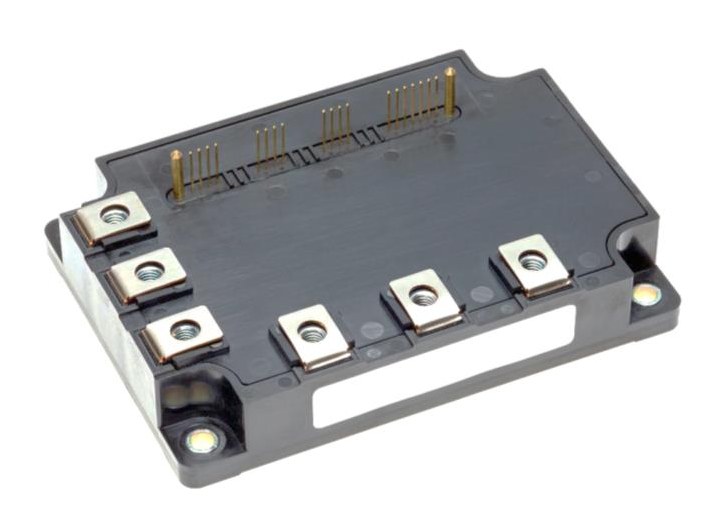

PM450RG1C065 Mitsubishi - Intelligent Power Module
PM450RG1C065 Description
PM450RG1C065 is a 650 V / 450 A seven-pack (3-phase inverter + brake) intelligent power module (IPM) from Mitsubishi Electric (G1 C-Package package). Typical applications: general purpose inverter, servo drives and other motor controls.
USComponent supplies PM450RG1C065 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Adopting Full-Gate CSTBT chip
- The over-temperature protection which detects the chip surface temperature of CSTBT is adopted
- Error output signal is available from each protection upper and lower arm of IPM
- Outputting an error signal corresponding to the abnormal state (error mode identification)
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi PM450RG1C065 is used for General purpose inverter, servo drives and other motor controls.
Key Specifications
PM450RG1C065 is a 650 V / 450 A seven-pack (3-phase inverter + brake) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | G1 series |
| Configuration | Seven-pack (3-phase inverter + brake) |
| Collector-emitter voltage (VCES) | 650 V |
| Collector current (IC) | 450 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | G1 C-Package |
| Package size | 85 x 120 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for PM450RG1C065 (reply within 24 hours)
