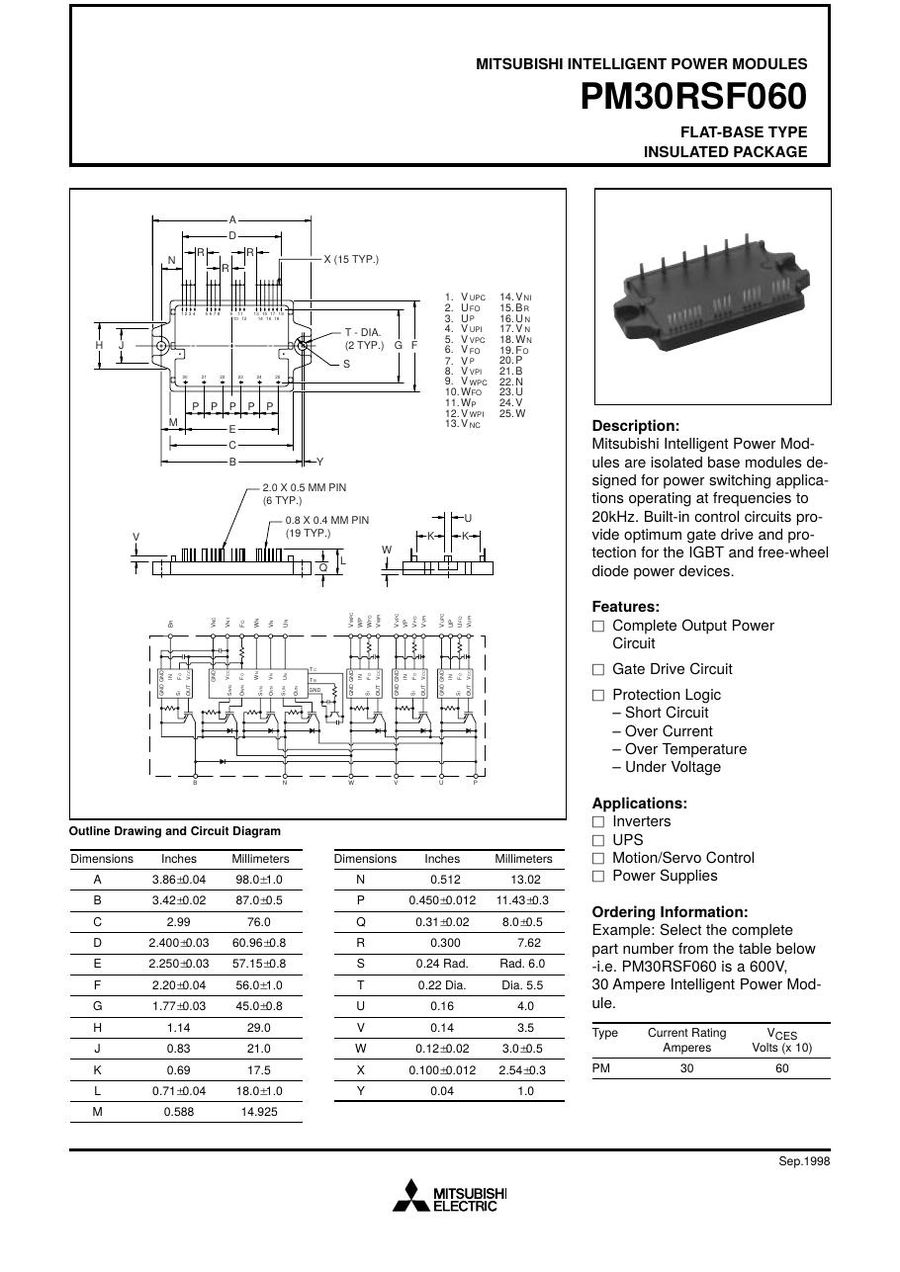

PM30RSF60Mitsubishi - Intelligent Power Module

PM30RSF60 Description

The Mitsubishi Electric PM30RSF60 is an intelligent power module (IPM) rated at 600 V and 30 A, available from USComponent. Typical applications for this type of device include compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM30RSF60.

Target Applications

Mitsubishi PM30RSF60 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Intelligent Power Module
Rated voltage	600 V
Rated current	30 A

Download PM30RSF60 Datasheet

Datasheet not available
