PM20CEE060-5Mitsubishi - Intelligent Power Module

PM20CEE060-5 Description

Mitsubishi Electric PM20CEE060-5 is an intelligent power module (IPM) rated at 600 V and 20 A. Intellimod™-2 Module Three Phase IGBT Inverter Output. Components of this type are commonly used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM20CEE060-5.

Target Applications

Mitsubishi PM20CEE060-5 is used for Inverters, Small UPS, Motion/Servo Control and AC Motor Control.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Intelligent Power Modules
Rated voltage	600 V
Rated current	20 A

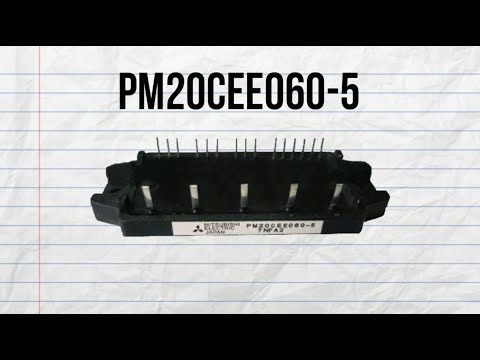

PM20CEE060-5 Video

Download PM20CEE060-5 Datasheet

Datasheet not available
