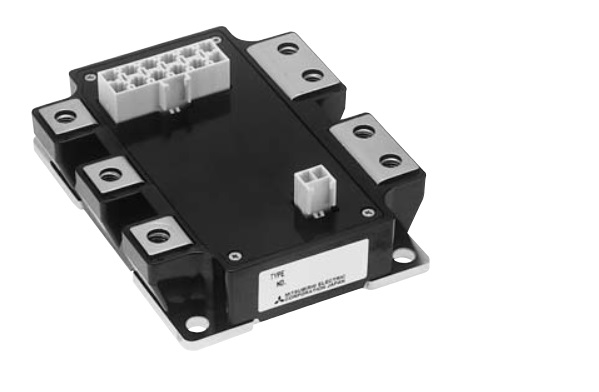

FM400TU-2A Mitsubishi - MOSFET Module

FM400TU-2A Description

Rated at 100 V and 200 A, the Mitsubishi Electric FM400TU-2A is a MOSFET module. It is built with six switches arranged as a three-phase bridge (6-in-1). Typical applications are switch-mode power supplies, DC-DC conversion, battery-powered vehicles and high-frequency welding.

Request a quote for the FM400TU-2A and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Summary of Features

FM400TU-2A is a 100V 200A MOSFET Module.

Target Applications

Mitsubishi FM400TU-2A is used for AC motor control of forklift (battery power source) and UPS.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Six-pack MOSFET module (six MOSFETs)
VDSS	100 V
ID	200 A (TC' = 130 °C)
IDM (peak)	400 A
VDS(on) typ. (chip)	0.29 V @ 200 A
Isolation voltage	2500 V (AC, 1 min)
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	600 g
Channel temperature	-40 to +150 °C
