CM600DY-13T Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 650V, 600A

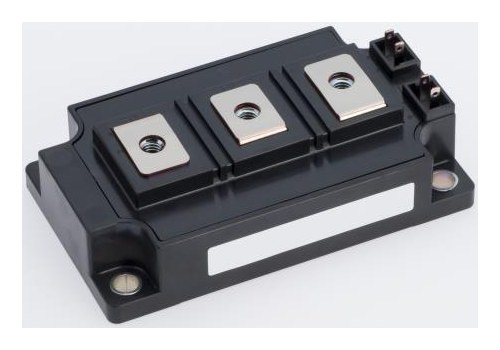

CM600DY-13T Mitsubishi IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

CM600DY-13T Description

CM600DY-13T is a 650 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric (Standard Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies CM600DY-13T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Flat base type
  • Nickel-plating tab terminals
  • RoHS Directive compliant
  • UL Recognized under UL1557, File No.E323585

Target Applications

Mitsubishi CM600DY-13T is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

CM600DY-13T is a 650 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

ParameterValue
ManufacturerMitsubishi Electric
Product typeIGBT module
SeriesT series
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)650 V
Collector current (IC)600 A
Isolation voltage (Viso)4,000 V RMS
PackageStandard Type
Package size62 x 108 mm
Supply status (Mitsubishi)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for CM600DY-13T (reply within 24 hours)
