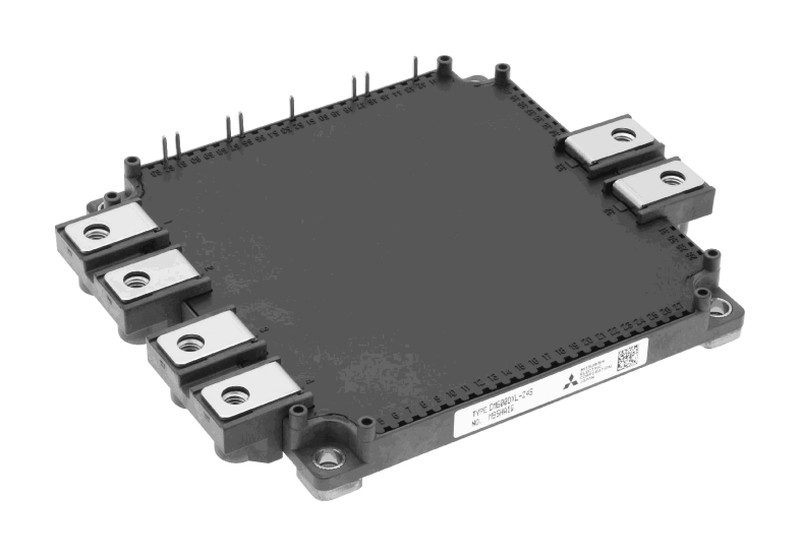

CM600DXL-24S Mitsubishi - IGBT Module
CM600DXL-24S Description
CM600DXL-24S is a 1,200 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Datasheet ratings: 600 A DC at TC = 119 °C, VCE(sat) 1.85 V typ. at 600 A, 2,500 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply. Mitsubishi lists it as not recommended for new design and names the standard-type T series as the alternative.
USComponent supplies CM600DXL-24S and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
CM600DXL-24S is a 1,200 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric.
- 1,200 V / 600 A dual (half-bridge) IGBT module
- S series (6th generation IGBT)
- Dual switch (half-bridge)
- VCE(sat) 1.85 V typ. / 2.30 V max. at 600 A, Tj = 25 °C
- Maximum junction temperature 175 °C
- Isolation voltage 2,500 V RMS
- Flat base Type
- Copper base plate (non-plating)
- Tin plating pin terminals
- RoHS Directive compliant
- Recognized under UL1557, File E323585
Target Applications
Mitsubishi CM600DXL-24S is used for AC Motor Control, Motion/Servo Control and Power supply.
Key Specifications
CM600DXL-24S is a 1,200 V / 600 A dual (half-bridge) IGBT module from Mitsubishi Electric, S series (6th generation IGBT). Source: Mitsubishi Electric datasheet (December 2013).
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | S series (6th generation IGBT) |
| Configuration | Dual switch (half-bridge) |
| Collector-emitter voltage (VCES) | 1,200 V |
| Collector current (IC, DC, TC = 119 °C) | 600 A |
| Repetitive peak collector current (ICRM, pulse) | 1,200 A |
| Total power dissipation (Ptot, TC = 25 °C) | 4,545 W |
| VCE(sat) (terminal), IC = 600 A, VGE = 15 V, Tj = 25 °C | 1.85 V typ. / 2.30 V max. |
| Gate-emitter threshold voltage VGE(th) | 5.4 / 6.0 / 6.6 V (min. / typ. / max.) |
| Isolation voltage (Visol, AC 1 min) | 2,500 V RMS |
| Maximum junction temperature (Tjmax) | 175 °C |
| Operating junction temperature | -40 to +150 °C |
| Mounting torque (to heat sink) | M5 screw: 2.5 - 3.5 N·m (typ. 3.0) |
| Mounting torque (main terminals) | M6 screw: 3.5 - 4.5 N·m (typ. 4.0) |
| Mass (typ.) | 690 g |
| Supply status (Mitsubishi) | Not recommended for new design (Mitsubishi supply outlook date 2026/09); alternative: standard-type T series |
| Applications (datasheet) | AC Motor Control, Motion/Servo Control, Power supply, etc. |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for CM600DXL-24S (reply within 24 hours)
