CM300RXL-24S1 Mitsubishi - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 300A

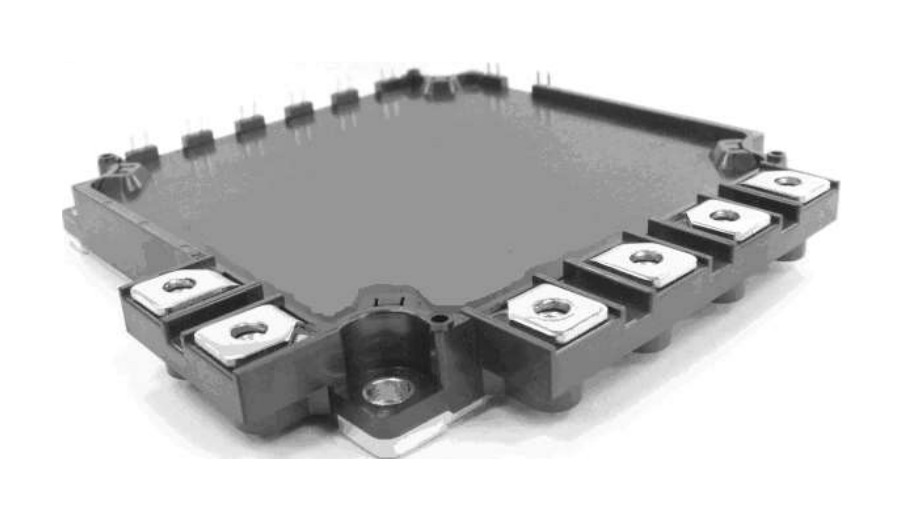

CM300RXL-24S1 Mitsubishi IGBT Module

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

CM300RXL-24S1 Description

CM300RXL-24S1 is a 1,200 V / 300 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, S1 series (6th generation IGBT). Datasheet ratings: 300 A DC at TC = 94 °C, VCE(sat) 2.00 V typ. at 300 A, 4,000 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM300RXL-24S1 and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

CM300RXL-24S1 is a 1,200 V / 300 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric.

  • 1,200 V / 300 A seven-pack (inverter + brake) IGBT module
  • S1 series (6th generation IGBT)
  • Seven-pack (3-phase inverter + brake chopper)
  • VCE(sat) 2.00 V typ. / 2.45 V max. at 300 A, Tj = 25 °C
  • Maximum junction temperature 175 °C
  • Isolation voltage 4,000 V RMS
  • Flat base Type
  • Copper base plate (non-plating)
  • Tin plating pin terminals
  • RoHS Directive compliant
  • Recognized under UL1557, File E323585

Target Applications

Mitsubishi CM300RXL-24S1 is used for AC Motor Control, Motion/Servo Control and Power supply.

Key Specifications

CM300RXL-24S1 is a 1,200 V / 300 A seven-pack (inverter + brake) IGBT module from Mitsubishi Electric, S1 series (6th generation IGBT). Source: Mitsubishi Electric datasheet (September 2017).

ParameterValue
ManufacturerMitsubishi Electric
Product typeIGBT module
SeriesS1 series (6th generation IGBT)
ConfigurationSeven-pack (3-phase inverter + brake chopper)
Collector-emitter voltage (VCES, inverter part)1,200 V
Collector current (IC, DC, TC = 94 °C, inverter part)300 A
Repetitive peak collector current (ICRM, pulse, inverter part)600 A
Total power dissipation (Ptot, TC = 25 °C, inverter part)1,665 W
VCE(sat) (terminal), IC = 300 A, VGE = 15 V, Tj = 25 °C, inverter part2.00 V typ. / 2.45 V max.
Gate-emitter threshold voltage VGE(th), inverter part5.4 / 6.0 / 6.6 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)4,000 V RMS
Maximum junction temperature (Tjmax)175 °C
Operating junction temperature-40 to +150 °C
Mounting torque (to heat sink)M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mounting torque (main terminals)M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mass (typ.)690 g
Supply status (Mitsubishi)Discontinued by Mitsubishi
Applications (datasheet)AC Motor Control, Motion/Servo Control, Power supply, etc.
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for CM300RXL-24S1 (reply within 24 hours)
