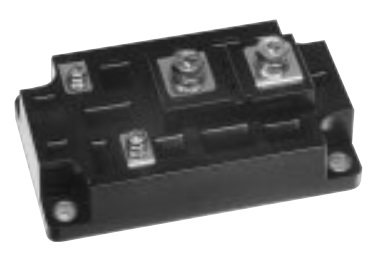

CM300HA-12HMitsubishi - IGBT Module

CM300HA-12H Description

The Mitsubishi Electric CM300HA-12H is an IGBT module rated at 600 V and 300 A, available from USComponent. High Power Switching Use Insulated Type IGBT Module. Typical applications for this type of device include variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM300HA-12H.

Target Applications

Mitsubishi CM300HA-12H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Single - one IGBT with free-wheel diode
Series	H-Series
VCES	600 V
IC	300 A (TC = 25 °C)
ICM (peak)	600 A
VCE(sat) typ.	2.1 V @ 300 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 1.96 - 2.94 N·m; M4: 0.98 - 1.47 N·m
Mounting torque	M6: 1.96 - 2.94 N·m
Weight	400 g
Junction temperature	-40 to +150 °C
