CM100E3Y-12E Mitsubishi - IGBT Module

CM100E3Y-12E Description

Mitsubishi Electric makes the CM100E3Y-12E, a 600 V, 100 A IGBT module. You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

We help engineers and repair technicians find parts like the CM100E3Y-12E, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi CM100E3Y-12E is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

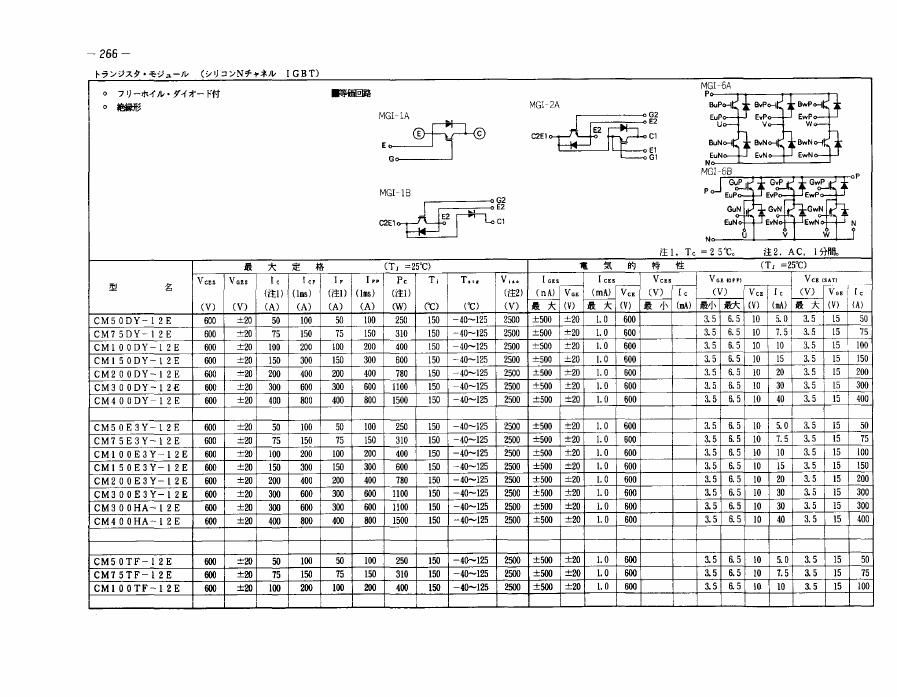

CM100E3Y-12E is a 600 V / 100 A IGBT module from Mitsubishi Electric. Source: manufacturer datasheet (detailed).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Configuration	Equivalent circuit MGI-1B (IGBT with free-wheeling diode, chopper type)
Package	Outline M-4A2E
Collector-emitter voltage (VCES)	600 V
Gate-emitter voltage (VGES)	±20 V
Collector current (IC)	100 A (Tc = 25 °C)
Peak collector current (ICP)	200 A (1 ms)
Diode forward current (IF / IFP)	100 A / 200 A (1 ms)
Collector dissipation (PC)	400 W (Tc = 25 °C)
Collector-emitter saturation voltage (VCE(sat))	3.5 V max (VGE = 15 V, IC = 100 A, Tj = 25 °C)
Gate threshold voltage (VGE(off))	3.5 to 6.5 V (VCE = 10 V, IC = 10 mA)
Isolation voltage (Viso)	2500 V (AC, 1 min)
Junction temperature (Tj)	150 °C
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM100E3Y-12E (reply within 24 hours)
