IRKL136-12 International Rectifier - Thyristor / Diode Module

IRKL136-12 Description

The IRKL136-12 from International Rectifier is a thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the IRKL136-12 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

International Rectifier IRKL136-12 is used for high-frequency power switching in switch mode power supplies, DC-DC converters, battery-powered vehicles and equipment, welding machines and induction heating.

Key Specifications

IRKL136-12 is a 1,200 V, 136 A thyristor/diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor/diode module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	136 A

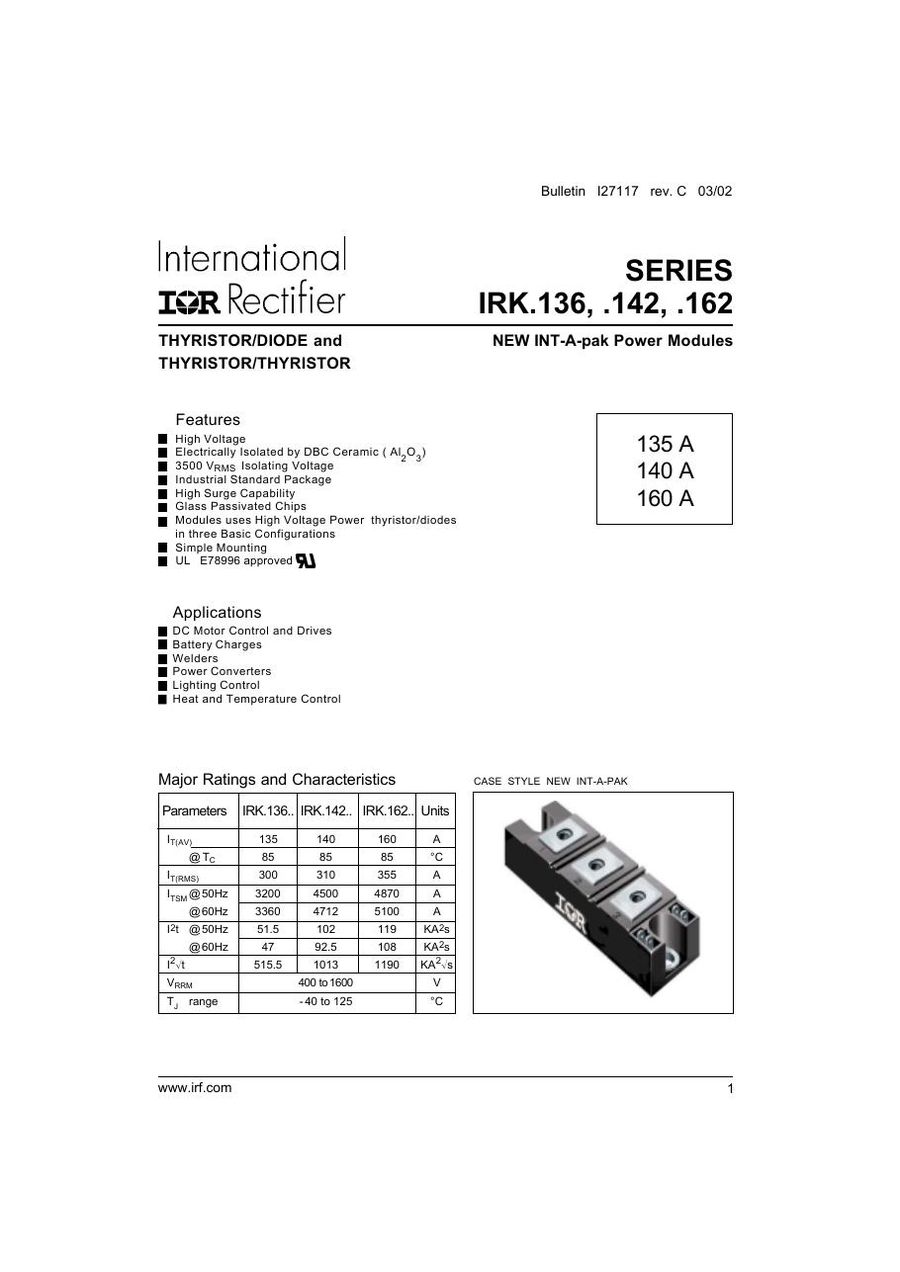

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for IRKL136-12 (reply within 24 hours)
