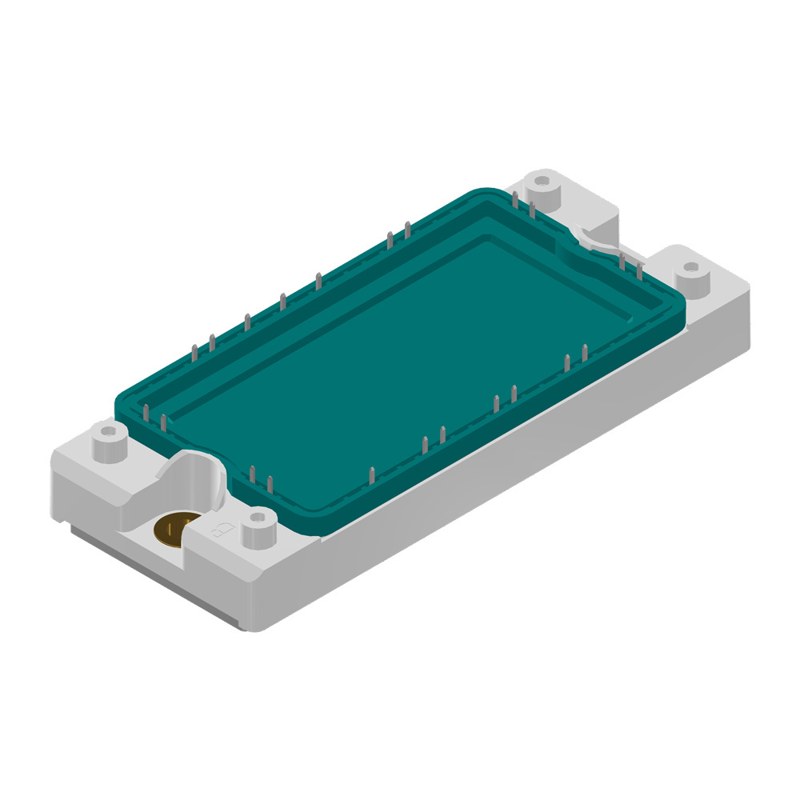

VVZB135-16ioXT IXYS - Rectifier Bridge

VVZB135-16ioXT Description

VVZB135-16ioXT is a 1600 V / 150 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies VVZB135-16ioXT and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS VVZB135-16ioXT is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

VVZB135-16ioXT is a 1600 V / 150 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge, half-controlled (high-side) + Brake Unit + NTC
Repetitive peak reverse voltage (VRRM)	1600 V
Average output current (IdAV)	150 A
Package	E2-Pack
Isolation voltage	3600 V~
Weight	175 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for VVZB135-16ioXT (reply within 24 hours)
