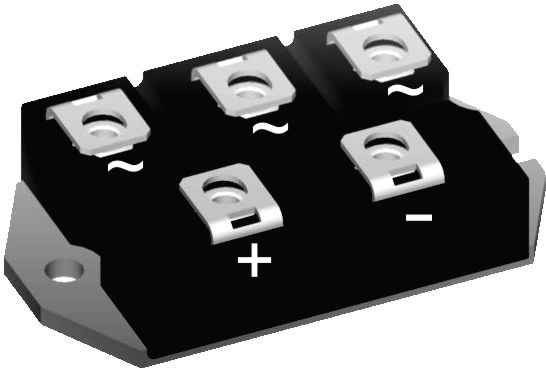

VUO64-16NO7 IXYS - Rectifier Bridge

VUO64-16NO7 Description

VUO64-16NO7 is a 1600 V / 60 A rectifier bridge module from IXYS (PWS-D Flat package). Typical applications: diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies VUO64-16NO7 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS VUO64-16NO7 is used for Diode for main rectification, For three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

VUO64-16NO7 is a 1600 V / 60 A rectifier bridge module from IXYS (now part of Littelfuse) in a PWS-D Flat package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Three-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)	1600 V
Average output current (IdAV)	60 A
Package	PWS-D Flat
Isolation voltage	3000 V~
Weight	120 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for VUO64-16NO7 (reply within 24 hours)
