VUO110-12NO7 IXYS - Rectifier Module

VUO110-12NO7 Description

VUO110-12NO7 is a three phase rectifier bridge module from IXYS, rated 1200V, 127A. Typical applications: Supplies for DC power equipment, input rectifiers for PWM inverter, battery DC power supplies and field supply for DC motors.

USComponent supplies VUO110-12NO7 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS VUO110-12NO7 is used for Supplies for DC power equipment, input rectifiers for PWM inverter, battery DC power supplies and field supply for DC motors.

Key Specifications

VUO110-12NO7 is a three phase rectifier bridge module from IXYS, rated 1200V, 127A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	IXYS
Repetitive peak reverse voltage VRRM	1200 V
Non-repetitive VRSM	1200 V
Output current IdAV	127 A (TC = 100 °C, module)
Surge current IFSM (10 ms, 45 °C)	1200 A
Isolation voltage	3000 V~
Terminals	Screw terminals
Datasheet	Available on this page (PDF)

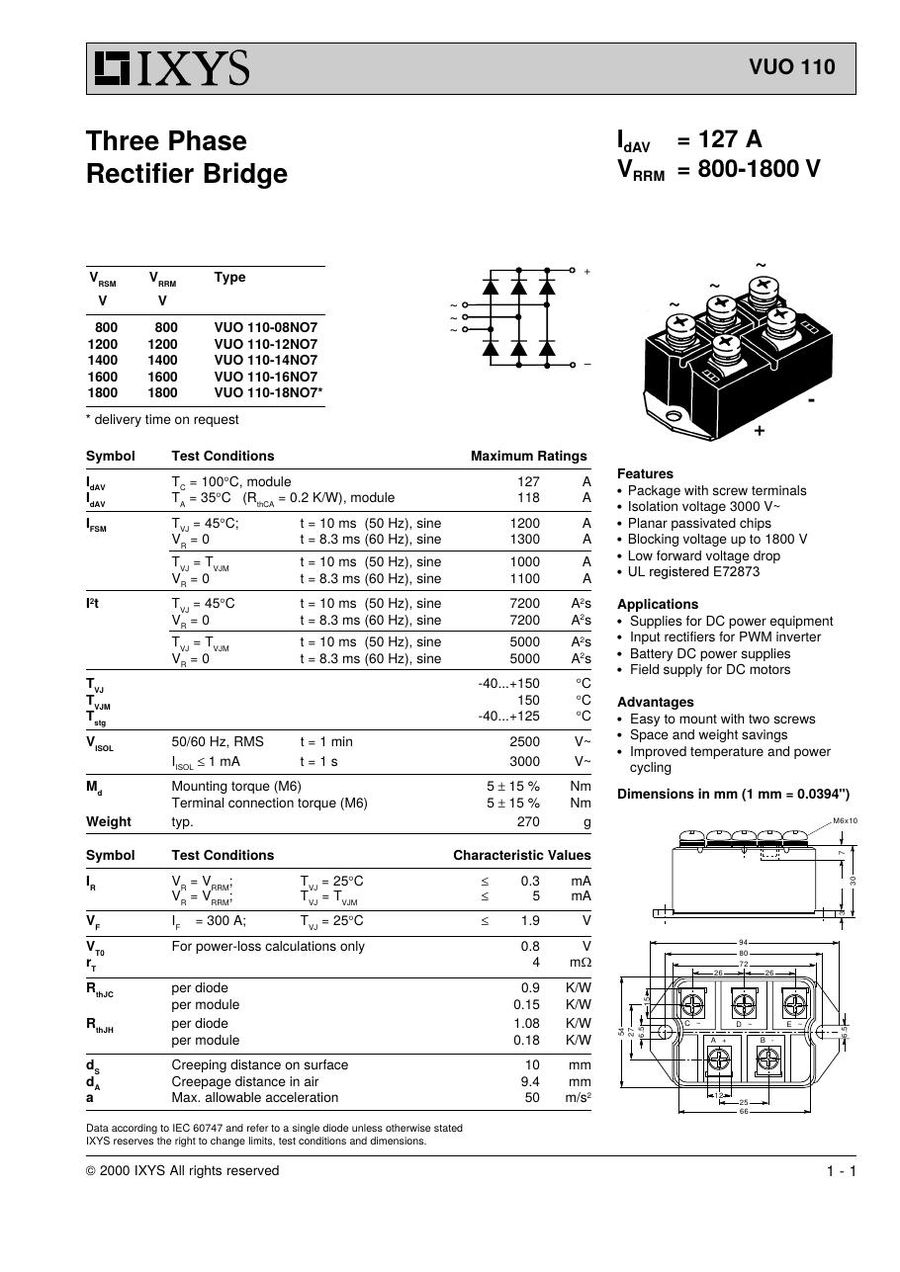

Note: data taken from the IXYS datasheet of VUO 110 series, which covers VUO110-12NO7.
