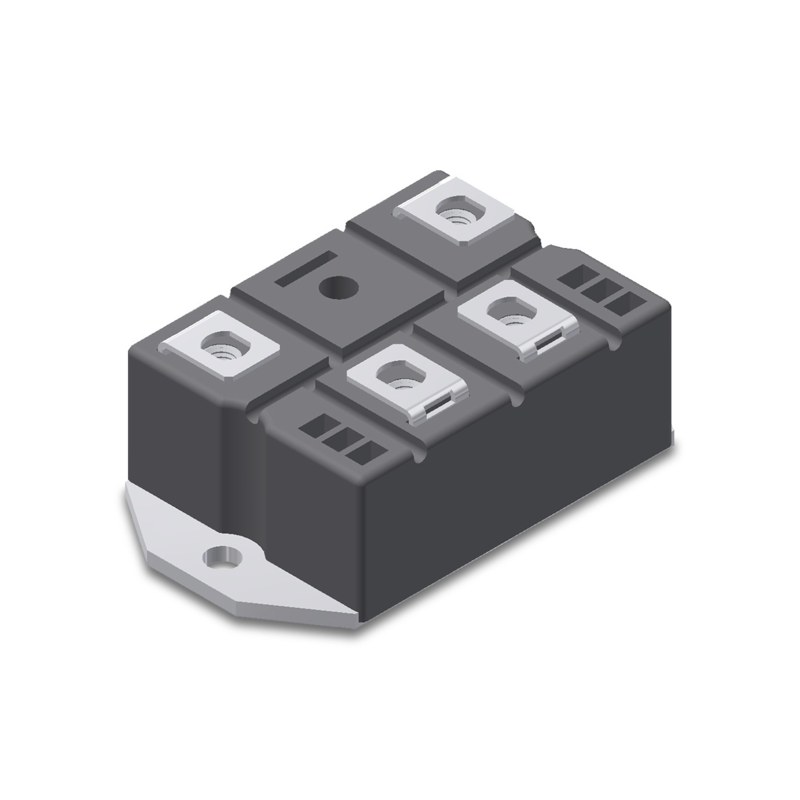

VBO160-08NO7 IXYS - Rectifier Bridge

VBO160-08NO7 Description

VBO160-08NO7 is a 800 V / 160 A rectifier bridge module from IXYS (PWS-E package). Typical applications: diode for main rectification, For one phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies VBO160-08NO7 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS VBO160-08NO7 is used for Diode for main rectification, For one phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

VBO160-08NO7 is a 800 V / 160 A rectifier bridge module from IXYS (now part of Littelfuse) in a PWS-E package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier bridge module
Configuration	Single-phase rectifier bridge
Repetitive peak reverse voltage (VRRM)	800 V
Average output current (IdAV)	160 A
Package	PWS-E
Isolation voltage	3000 V~
Weight	270 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for VBO160-08NO7 (reply within 24 hours)
