MTI200WX75GD IXYS - MOSFET Module

Category: MOSFET Modules

Specifications: 75V, 255A

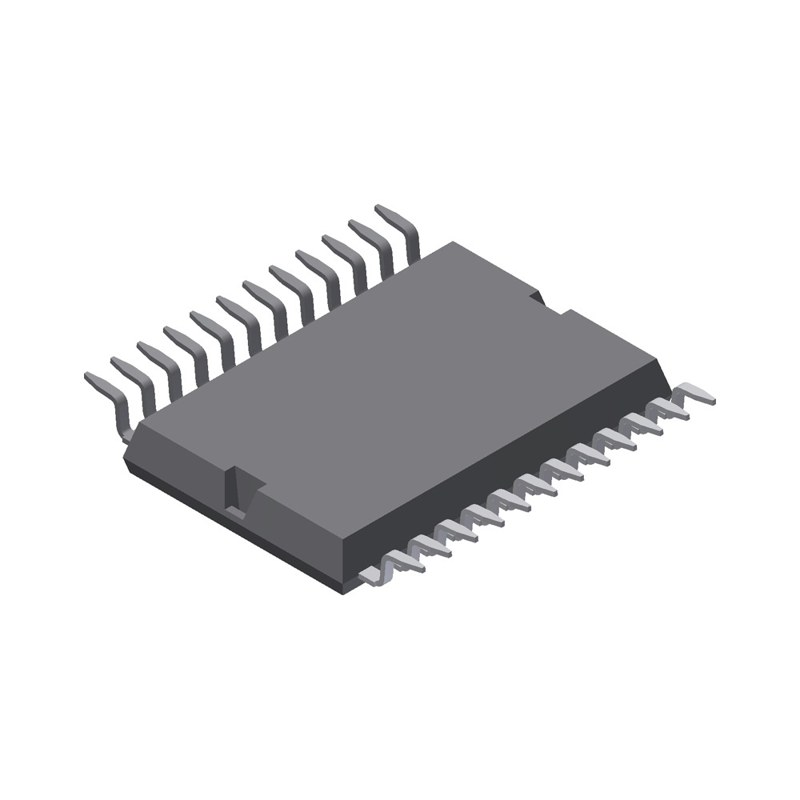

MTI200WX75GD IXYS MOSFET Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MTI200WX75GD Description

MTI200WX75GD is a 75 V / 255 A MOSFET module from IXYS (ISOPLUS-DIL® package). Typical applications: in automobiles, Electric power steering, Starter generator, In industrial vehicles, Propulsion drives, Fork lift drives, Battery supplied equipment, DC-DC converter cally trained staff. The user will have to evaluate the suitability nents may not be considered as an assurance of component characteris data given in this product data sheet or which concerns the specifi information on the types in question please contact your local sales or life support applications, please notify. For any such applicatio delivery dependent on the realization of any such measures..

USComponent supplies MTI200WX75GD and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low RDSon
  • Optimized intrinsic reverse diode
  • High level of integration
  • High current capability
  • Aux. terminals for MOSFET gate control
  • Terminals for soldering or welding connections
  • Isolated DCB ceramic base plate with optimized heat transfer
  • Space and weight savings
  • High current capability Terms & Conditions of usage The data contained in this product data sheet is exclusively intended for techni the product data with respect to his application. The specifications of our compo notes must be considered. Should you require product information in excess of the office. Due to technical requirements our product may contain dangerous substances. For Should you intend to use the product in aviation, in health or life endangering
  • To perform joint risk and quality assessments

Target Applications

IXYS MTI200WX75GD is used for electric power steering and starter generators in automobiles, propulsion and fork lift drives in industrial vehicles, battery supplied equipment and DC-DC converters.

Key Specifications

MTI200WX75GD is a 75 V / 255 A MOSFET module from IXYS (now part of Littelfuse) in a ISOPLUS-DIL® package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeMOSFET module
ConfigurationThree-Phase
Drain-source voltage (VDSS)75 V
Drain current (ID25, Tc = 25 °C)255 A
PackageISOPLUS-DIL®
Weight25 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MTI200WX75GD (reply within 24 hours)
