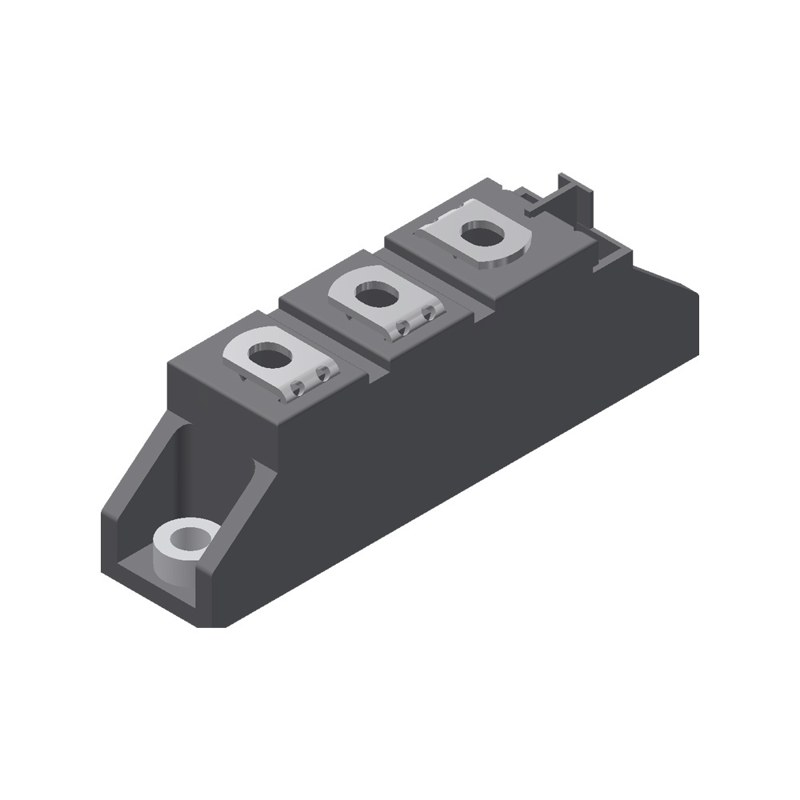

MDA95-22N1B IXYS - Diode Module

MDA95-22N1B Description

MDA95-22N1B is a 2200 V / 120 A rectifier diode module from IXYS (TO-240AA package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDA95-22N1B and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDA95-22N1B is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDA95-22N1B is a 2200 V / 120 A rectifier diode module from IXYS (now part of Littelfuse) in a TO-240AA package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier diode module
Configuration	Common Anode
Repetitive peak reverse voltage (VRRM)	2200 V
Average forward current (IFAV)	120 A
Package	TO-240AA
Isolation voltage	4800 V~
Weight	76 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDA95-22N1B (reply within 24 hours)
