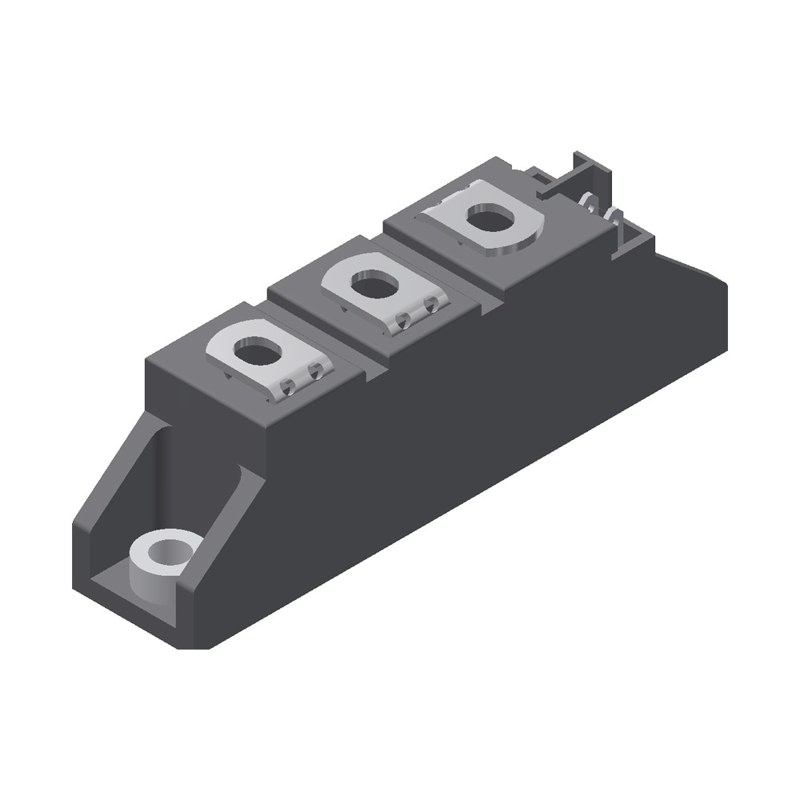

MCNA95PD2200TB IXYS - Thyristor / Diode Module

MCNA95PD2200TB Description

MCNA95PD2200TB is a 2200 V / 95 A thyristor / diode module from IXYS (TO-240AA package). Typical applications: line rectifying 50/60 Hz, Softstart AC motor control, DC Motor control, Power converter, AC power control, Lighting and temperature control.

USComponent supplies MCNA95PD2200TB and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MCNA95PD2200TB is used for Line rectifying 50/60 Hz, Softstart AC motor control, DC Motor control, Power converter, AC power control, Lighting and temperature control.

Key Specifications

MCNA95PD2200TB is a 2200 V / 95 A thyristor / diode module from IXYS (now part of Littelfuse) in a TO-240AA package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Thyristor / diode module
Configuration	Phase leg
Repetitive peak reverse voltage (VRRM)	2 x 2200 V
Average on-state current (ITAV)	95 A
Package	TO-240AA
Isolation voltage	4800 V~
Weight	81 g
Supply status	Active
Datasheet	Available on this page (PDF)
