MCNA120UI2200PED IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 2200V, 120A

MCNA120UI2200PED IXYS Rectifier Bridge

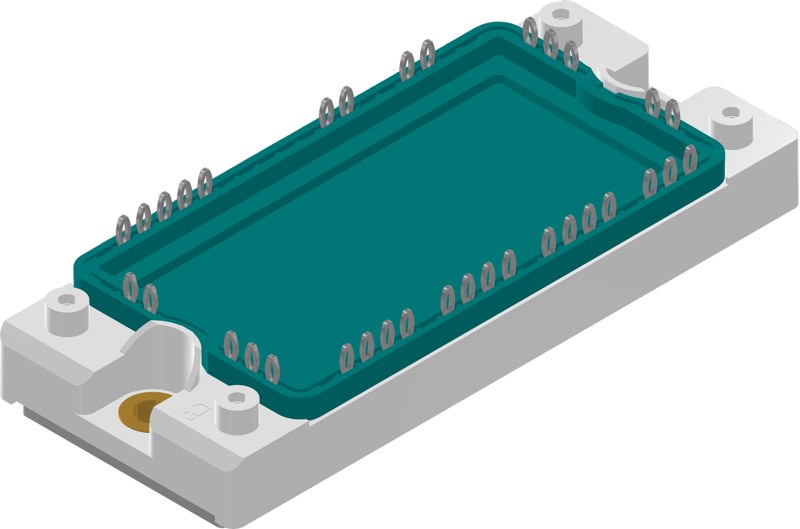

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MCNA120UI2200PED Description

MCNA120UI2200PED is a 2200 V / 120 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies MCNA120UI2200PED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Thyristor/Standard Rectifier for line frequency
  • Planar passivated chips
  • Long-term stability
  • Low forward voltage drop
  • Copper base plate with Direct Copper Bonded Al2O3-ceramic
  • Improved temperature and power cycling

Target Applications

IXYS MCNA120UI2200PED is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

MCNA120UI2200PED is a 2200 V / 120 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge, half-controlled (high-side) + Brake Unit
Repetitive peak reverse voltage (VRRM)2200 V
Average output current (IdAV)120 A
PackageE2-Pack
Isolation voltage3600 V~
Weight176 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists MCNA120UI2200PED as obsolete. USComponent can still source MCNA120UI2200PED and help you find a suitable alternative.
