MCMA240UI1600ED IXYS - Rectifier Bridge

Category: Bridge Rectifiers

Specifications: 1600V, 240A

MCMA240UI1600ED IXYS Rectifier Bridge

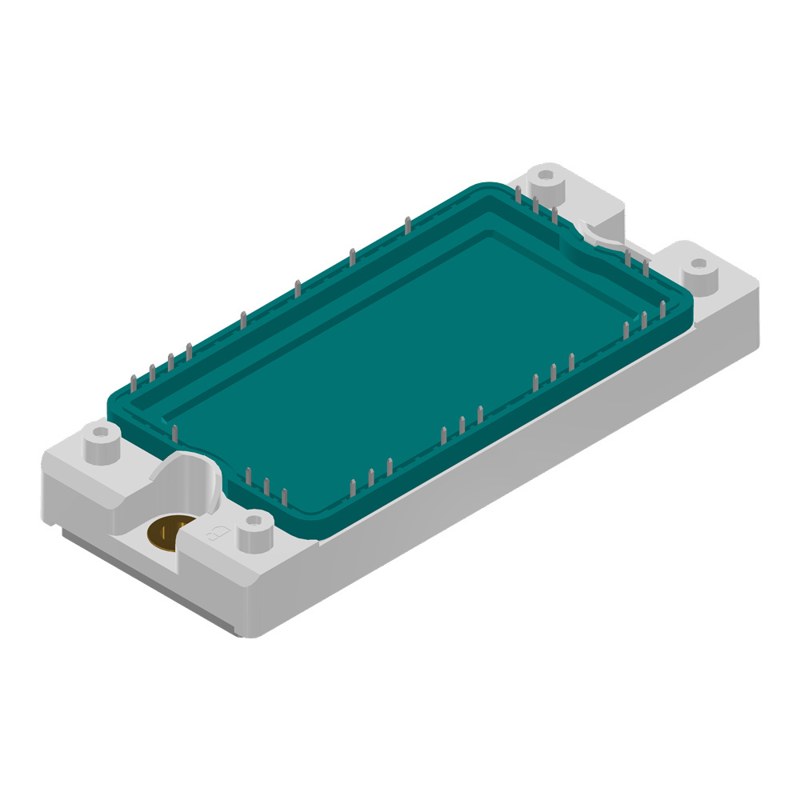

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MCMA240UI1600ED Description

MCMA240UI1600ED is a 1600 V / 240 A rectifier bridge module from IXYS (E2-Pack package). Typical applications: 3~ Rectifier with brake unit for drive inverters.

USComponent supplies MCMA240UI1600ED and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Package with DCB ceramic
  • Improved temperature and power cycling
  • Planar passivated chips
  • Very low forward voltage drop
  • Very low leakage current
  • X2PT - 2nd generation Xtreme light Punch Through
  • Short circuit rated for 10 µsec.
  • Very low gate charge
  • Low EMI
  • Square RBSOA @ 2x Ic

Target Applications

IXYS MCMA240UI1600ED is used for 3~ Rectifier with brake unit for drive inverters.

Key Specifications

MCMA240UI1600ED is a 1600 V / 240 A rectifier bridge module from IXYS (now part of Littelfuse) in a E2-Pack package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeRectifier bridge module
ConfigurationThree-phase rectifier bridge, half-controlled (high-side) + Brake Unit
Repetitive peak reverse voltage (VRRM)1600 V
Average output current (IdAV)240 A
PackageE2-Pack
Isolation voltage3600 V~
Weight176 g
Supply statusActive
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for MCMA240UI1600ED (reply within 24 hours)
