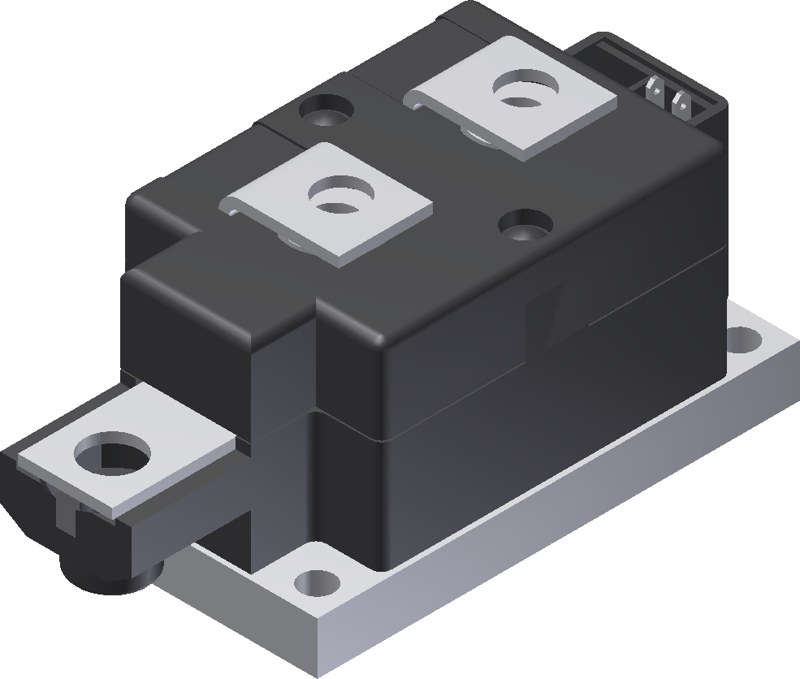

MCD224-20io1 IXYS - Thyristor / Diode Module

MCD224-20io1 Description

MCD224-20io1 is a 2000 V / 250 A thyristor / diode module from IXYS (Y1 package). Typical applications: line rectifying 50/60 Hz, Softstart AC motor control, DC Motor control, Power converter, AC power control, Lighting and temperature control.

USComponent supplies MCD224-20io1 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MCD224-20io1 is used for Line rectifying 50/60 Hz, Softstart AC motor control, DC Motor control, Power converter, AC power control, Lighting and temperature control.

Key Specifications

MCD224-20io1 is a 2000 V / 250 A thyristor / diode module from IXYS (now part of Littelfuse) in a Y1 package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Thyristor / diode module
Configuration	Phase leg
Repetitive peak reverse voltage (VRRM)	2 x 2000 V
Average on-state current (ITAV)	250 A
Package	Y1
Isolation voltage	4800 V~
Weight	700 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MCD224-20io1 (reply within 24 hours)
