MCC44-12I01-B IXYS - Thyristor / Diode Module

Also written as: MCC44-12I01B, MCC4412i01B

Category: Thyristor & SCR Modules

Specifications: 1200V, 80A

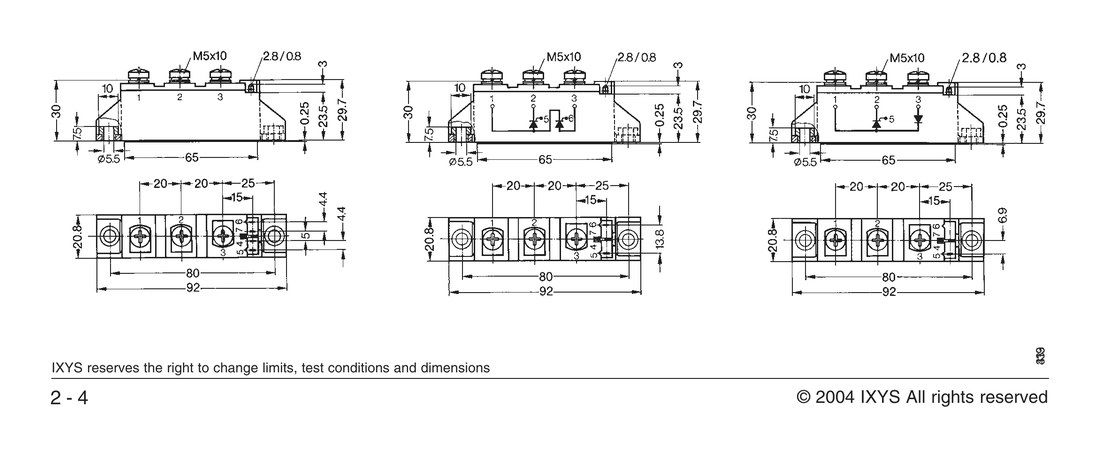

MCC4412i01B, IXYS Power Transistor Module

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

MCC44-12I01-B Description

The MCC44-12I01-B from IXYS is a thyristor module. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters.

Request a quote for the MCC44-12I01-B and our team will get back to you with price, quantity available and lead time. We ship worldwide. As with any power device, please check the manufacturer's datasheet to confirm it matches your design.

Target Applications

IXYS MCC44-12I01-B is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

ManufacturerIXYS
ConfigurationThyristor module, two thyristors (MCC), TO-240 AA
VRRM / VDRM1200 V
VRSM / VDSM1300 V
ITRMS2 x 80 A
ITAVM2 x 51 A
ITSM1150 A (45 °C, 10 ms, 50 Hz)
Turn-off time tq typ.150 µs
Isolation voltage3000 V~ (50/60 Hz, 1 min)
Mounting torqueM5: 2.5 - 4.0 Nm
Terminal torqueM5: 2.5 - 4.0 Nm
Weight90 g

Technical document (PDF)  |  Request a quote for MCC44-12I01-B (reply within 24 hours)
