IXA30RG1200DHGLB IXYS - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 43A

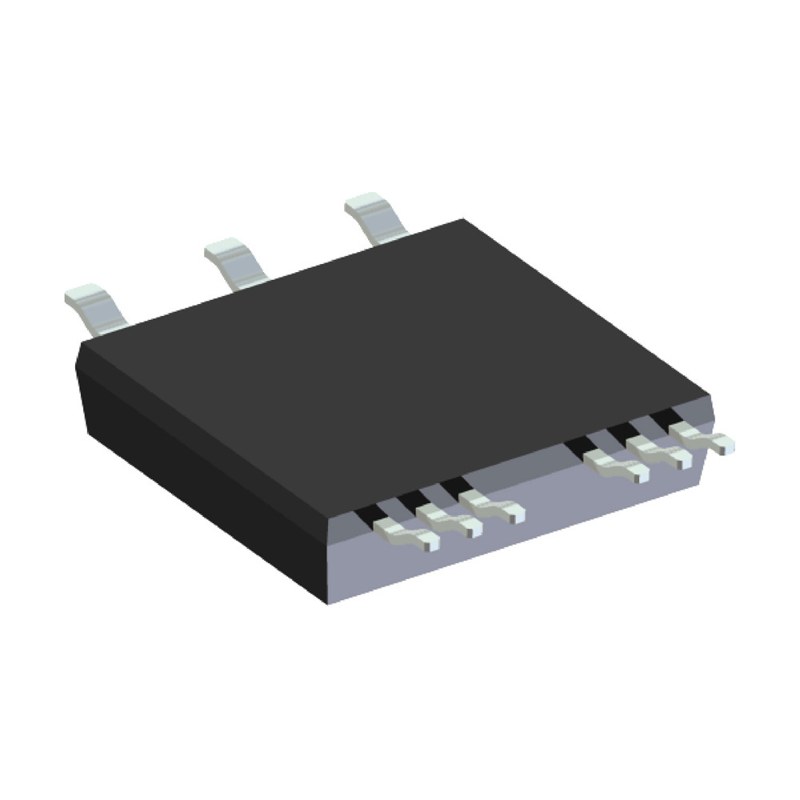

IXA30RG1200DHGLB IXYS IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

IXA30RG1200DHGLB Description

IXA30RG1200DHGLB is a 1200 V / 43 A XPT IGBT module from IXYS (SMPD package). Typical applications: AC drives, Brake chopper, Boost chopper, Switched reluctance drives.

USComponent supplies IXA30RG1200DHGLB and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • XPT IGBT
  • Low saturation voltage
  • Positive temperature coefficient for easy paralleling
  • Fast switching
  • Short tail current for optimized performance in resonant circuits
  • Sonic diode
  • Fast reverse recovery
  • Low operating forward voltage
  • Low leakage current
  • Low temperature dependency of reverse recovery

Target Applications

IXYS IXA30RG1200DHGLB is used for AC drives, Brake chopper, Boost chopper, Switched reluctance drives.

Key Specifications

IXA30RG1200DHGLB is a 1200 V / 43 A XPT IGBT module from IXYS (now part of Littelfuse) in a SMPD package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeXPT IGBT module
ConfigurationBoost Topology
Collector-emitter voltage (VCES)1200 V
Collector current (IC25, Tc = 25 °C)43 A
PackageSMPD
Isolation voltage3000 V~
Weight8 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists IXA30RG1200DHGLB as obsolete. USComponent can still source IXA30RG1200DHGLB and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for IXA30RG1200DHGLB (reply within 24 hours)
