FUE30-12N1 IXYS - Diode Module

Category: Diode & Rectifier Modules

Specifications: 1200V, 30A

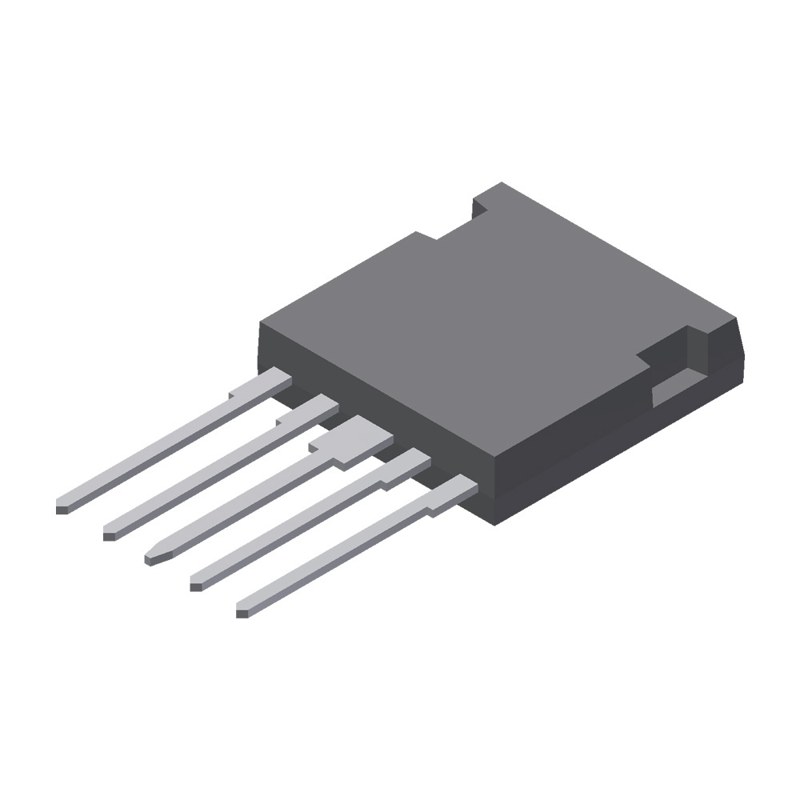

Representative image – actual product may differ

Part Number *

Quantity *

Email *

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

Need overnight delivery?

FUE30-12N1 Description

FUE30-12N1 is a 1200 V / 30 A fast recovery diode (FRED) module from IXYS (i4-Pac package). Typical applications: rectifiers in switch mode power supplies (SMPS).

USComponent supplies FUE30-12N1 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Planar passivated chips
Very low leakage current
Very short recovery time
Improved thermal behaviour
Very low Irm-values
Very soft recovery behaviour
Avalanche voltage rated for reliable operation
Soft reverse recovery for low EMI/RFI
Power dissipation within the diode
Turn-on loss in the commutating switch

Target Applications

IXYS FUE30-12N1 is used for Rectifiers in switch mode power supplies (SMPS).

Key Specifications

FUE30-12N1 is a 1200 V / 30 A fast recovery diode (FRED) module from IXYS (now part of Littelfuse) in a i4-Pac package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Fast recovery diode (FRED) module
Configuration	Three-Phase Bridges
Repetitive peak reverse voltage (VRRM)	1200 V
Average output current (IdAV)	30 A
Package	i4-Pac
Isolation voltage	3000 V~
Weight	6 g
Supply status	Obsolete
Datasheet	Available on this page (PDF)
