DSA75-16B IXYS - Diode Module

DSA75-16B Description

DSA75-16B is an avalanche rectifier diode, stud mount DO-203AB (DO-5), cathode on stud from IXYS, rated 1600V, 110A. Typical applications: High power rectifiers, field supply for DC motors and power supplies.

USComponent supplies DSA75-16B and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS DSA75-16B is used for High power rectifiers, field supply for DC motors and power supplies.

Key Specifications

DSA75-16B is an avalanche rectifier diode, stud mount DO-203AB (DO-5), cathode on stud from IXYS, rated 1600V, 110A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	IXYS
Repetitive peak reverse voltage VRRM	1600 V
Non-repetitive VRSM	1700 V
Min. avalanche voltage V(BR)	1760 V
Average forward current IF(AV)M	110 A (Tcase = 100 °C)
RMS forward current	160 A
Surge current IFSM (10 ms, 45 °C)	1400 A
Forward voltage VF max. (150 A)	1.17 V
Max. junction temperature	180 °C

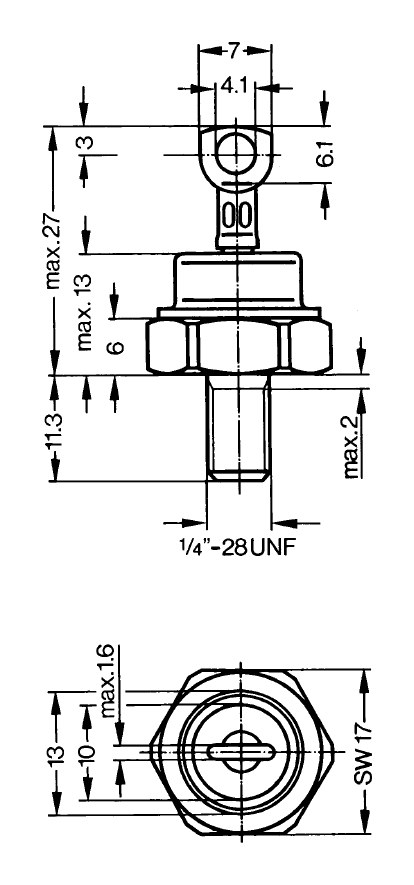

Package	DO-203 AB (DO-5), 1/4-28UNF, 21 g
Datasheet	Available on this page (PDF)

Note: data taken from the IXYS datasheet of DS 75 / DSA 75 series, which covers DSA75-16B.
