TZ150N26KOF Description

TZ150N26KOF is a 2,600 V / 150 A single phase control thyristor module (TZ150N series, PowerBLOCK) from eupec, now Infineon Technologies. Infineon has discontinued TZ150N26KOF (discontinuation notice Aug 5, 2020, last order date Feb 15, 2021). Infineon's nearest equivalent: TZ310N26KOF.

USComponent supplies discontinued Infineon / eupec modules. Request a quote for TZ150N26KOF availability and price - we reply within 24 hours.

Summary of Features

Target Applications

Infineon TZ150N26KOF finds applications in various industries and systems where high power switching is required.

Key Specifications

TZ150N26KOF is a 2,600 V / 150 A single phase control thyristor module (TZ150N series, PowerBLOCK) from eupec, now Infineon Technologies. Source: Infineon datasheet (eupec data sheet TZ150N, revision 3, 2004-03-11).

Parameter	Value
Manufacturer	Infineon Technologies (eupec)
Product type	Phase control thyristor module
Series	TZ150N (VDRM / VRRM classes 2000 - 2600 V; TZ150N26KOF = 2600 V)

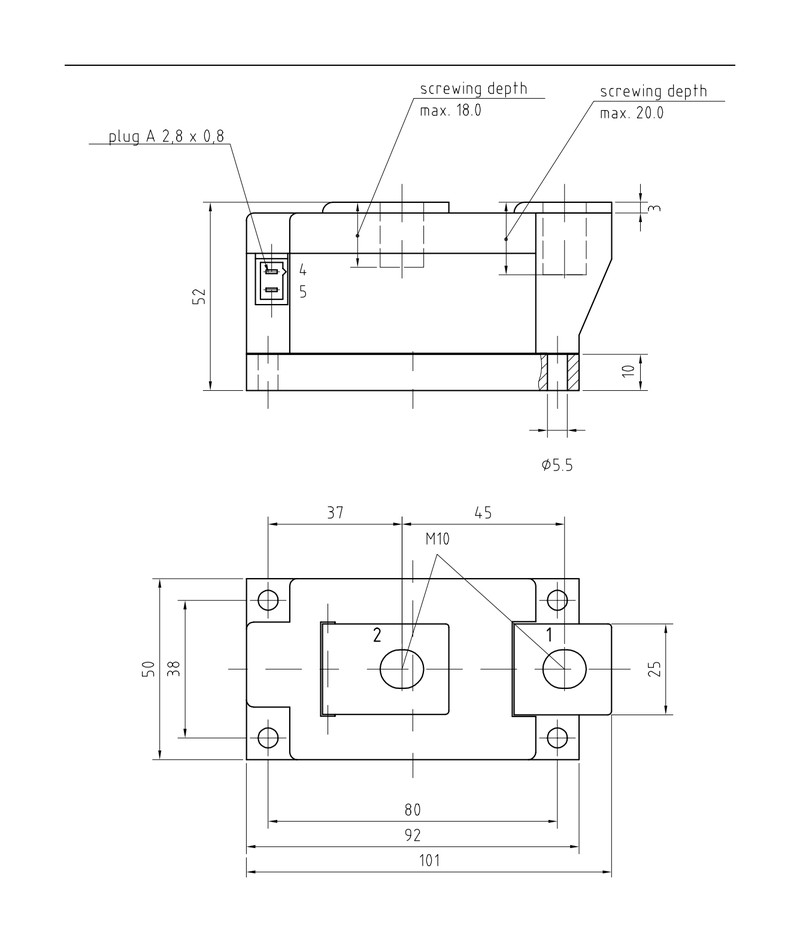

Housing	PowerBLOCK, 101 x 50 mm, 52 mm high, M10 main terminals
Configuration	Single thyristor (TZ)
Repetitive peak off-state / reverse voltage (VDRM / VRRM)	2,600 V
Non-repetitive peak reverse voltage (VRSM)	2,700 V
Average on-state current (ITAVM)	150 A (TC = 85 °C); 223 A (TC = 54 °C)
RMS on-state current (ITRMSM)	350 A
Surge current (ITSM, 10 ms)	4,500 A (Tvj = 25 °C); 4,000 A (Tvj max)
I²t value (10 ms)	101,000 A²s (25 °C); 80,000 A²s (Tvj max)
Critical rate of rise of on-state current (diT/dt)cr	60 A/µs
Critical rate of rise of off-state voltage (dvD/dt)cr	1,000 V/µs (6th letter F)
On-state voltage (vT)	2.6 V max. (iT = 600 A, Tvj max)
Threshold voltage V(TO) / slope resistance rT	1.2 V / 2.3 mΩ
Gate trigger current / voltage (IGT / VGT)	200 mA / 2 V max. (Tvj = 25 °C)
Holding / latching current (IH / IL)	300 mA / 1,200 mA max.
Off-state / reverse current (iD, iR)	50 mA max.
Circuit commutated turn-off time (tq)	300 µs typ. (5th letter O)
Thermal resistance junction-case (RthJC)	0.130 °C/W (180° sin); 0.124 °C/W (DC)
Thermal resistance case-heatsink (RthCH)	0.04 °C/W
Max. junction temperature (Tvj max)	125 °C
Operating temperature	-40 to +125 °C
Storage temperature	-40 to +130 °C
Isolation test voltage (VISOL)	3.0 kV (RMS, 1 min); 3.6 kV (1 s)
Internal isolation	AlN
Mounting torque (M1)	5 N·m
Terminal torque (M2)	12 N·m
Control terminals	A 2.8 x 0.8 (DIN 46 244)
Creepage distance	15 mm
Weight	900 g typ.
UL file	E 83336
Status (Infineon)	Discontinued, last order date Feb 15, 2021
Nearest equivalent (Infineon)	TZ310N26KOF
Datasheet	Available on this page (PDF)
