TT520N22KOFB01A Infineon - Thyristor / Diode Module

Category: Thyristor & SCR Modules

Specifications: 2200V, 520A

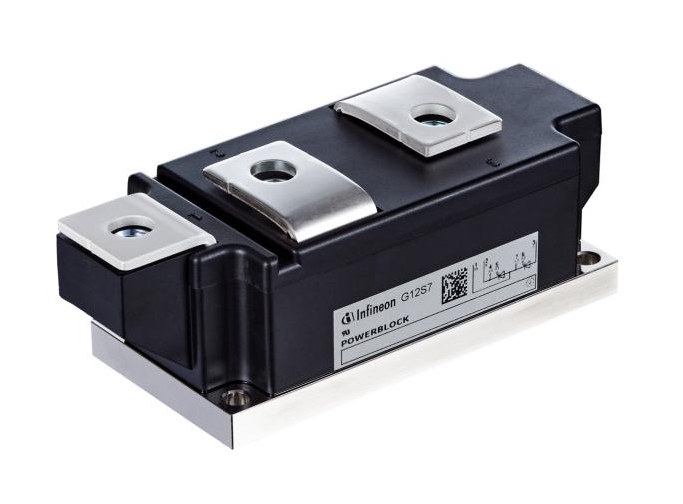

TT520N22KOFB01A Infineon Thyristor / Diode Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

TT520N22KOFB01A Description

TT520N22KOFB01A is a 2200 V / 520 A dual thyristor thyristor module from Infineon Technologies. Typical applications: soft starter, Rectifier for drives applications, Crowbar applications, Power controllers, Rectifiers for UPS, Battery chargers.

USComponent supplies TT520N22KOFB01A and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Infineon TT520N22KOFB01A is used for Soft starter, Rectifier for drives applications, Crowbar applications, Power controllers, Rectifiers for UPS, Battery chargers.

Key Specifications

TT520N22KOFB01A is a 2200 V / 520 A dual thyristor thyristor module from Infineon Technologies (60 mm base plate module). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeThyristor module
ConfigurationDual thyristor
Repetitive peak voltage (VDRM / VRRM)2200 V
Average on-state current (ITAVM)520 A
Package60 mm base plate module
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for TT520N22KOFB01A (reply within 24 hours)
