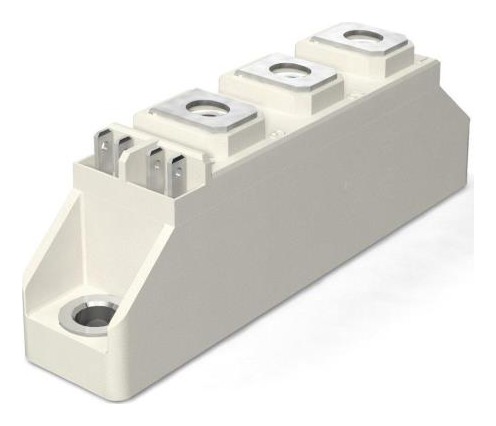

TT120N16SOFB01 Infineon - Thyristor / Diode Module

TT120N16SOFB01 Description

TT120N16SOFB01 is a 1600 V, 120 A Infineon thyristor module (dual thyristor), used for soft starters, rectifiers for drives, power controllers, UPS rectifiers, battery chargers, static switches.

USComponent supplies TT120N16SOFB01 and other Infineon / Eupec power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon TT120N16SOFB01 is used for soft starter, rectifier for drives applications, power controllers, rectifiers for UPS, battery chargers and static switches.

Key Specifications

TT120N16SOFB01 is a 1,600 V, 120 A Infineon thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Configuration	Dual thyristor
Repetitive peak voltage (VDRM / VRRM)	1,600 V
Average on-state current (ITAVM, TC 85 °C)	120 A
Technology	Phase control thyristors
Package	PowerBLOCK, 20 mm

Technical document (PDF)  |  Request a quote for TT120N16SOFB01 (reply within 24 hours)
