TT105N12KOF Description

The Infineon Technologies TT105N12KOF is a thyristor module rated at 1200 V and 105 A. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TT105N12KOF.

Summary of Features

Target Applications

Infineon TT105N12KOF is used for Auxiliary Inverters, High Power Converters, Motor Drives, Traction Drives, UPS Systems and Wind Turbines.

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Phase control thyristor module, two thyristors (TT), soldered contacts
VDRM / VRRM	1200 V
ITAVM	105 A (TC = 85 °C)
ITRMSM	160 A
ITSM	2600 A (25 °C) / 2200 A (Tvj max), 10 ms
I²t	34,000 A²s (25 °C, 10 ms)
Critical di/dt	120 A/µs
Critical dv/dt	1000 V/µs
On-state voltage vT max.	1.52 V @ 300 A
Gate trigger current / voltage	150 mA / 2.5 V max.
Turn-off time tq typ.	120 µs
Isolation test voltage	2.5 kV RMS (1 min)
Mounting torque	4 Nm
Terminal torque	4 Nm
Weight	125 g
Junction temperature	130 °C max.

TT105N12KOF Video

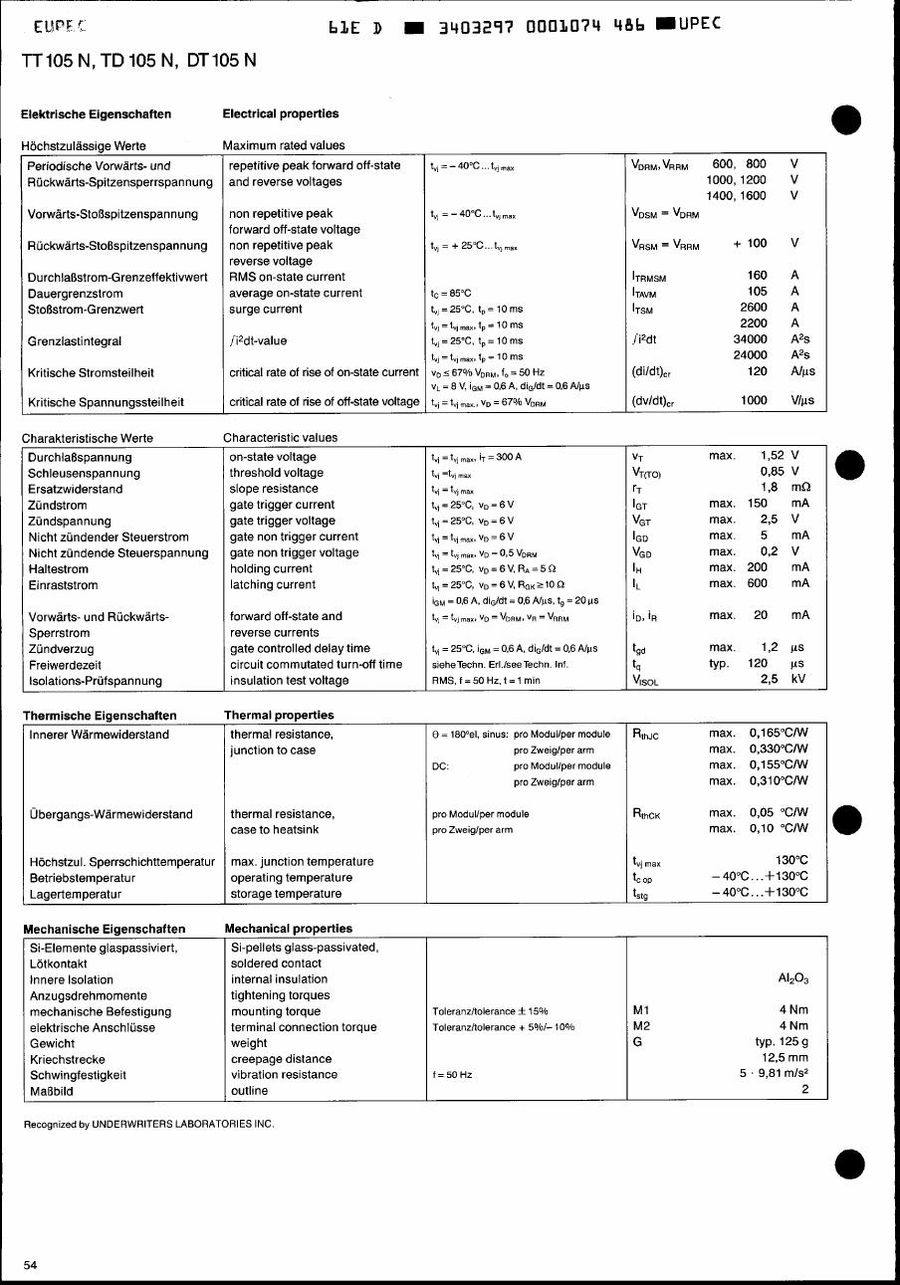

Download TT105N12KOF Datasheet
