TDB6HK180N22RRP_B81 Infineon - Thyristor / Diode Module

TDB6HK180N22RRP_B81 Description

TDB6HK180N22RRP_B81 is an Infineon 2,200 V / 180 A three-phase half-controlled thyristor/diode bridge with brake chopper, EconoPACK 2.

USComponent supplies TDB6HK180N22RRP_B81 and other Infineon power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon TDB6HK180N22RRP_B81 is used for Active rectifiers, three-phase half-controlled rectifier bridges.

Key Specifications

TDB6HK180N22RRP_B81 is an Infineon 2,200 V / 180 A three-phase half-controlled thyristor/diode bridge with brake chopper, EconoPACK 2. Key data from the Infineon datasheet.

Parameter	Value
Product type	Thyristor Module
Configuration	Three-phase half-controlled thyristor/diode bridge with brake chopper
Repetitive peak voltage VRRM / VDRM	2,200 V
Current class (type code)	180 A
Package	EconoPACK 2 (AG-ECONO2B)
Feature	Brake-chopper IGBT 1,700 V / 100 A (ICN)
Feature	Rectifier thyristors and diodes 2,200 V, IFRMSM 87 A per chip
Feature	Pre-applied thermal interface material, integrated NTC

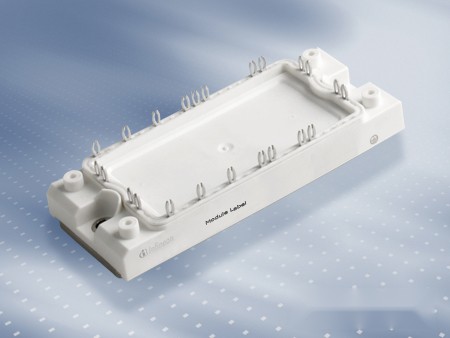

Note: Datasheet and picture shown are those of TDB6HK180N22RRP_B11 (the _B81 is a variant of the same module).

Status: end of life announced by Infineon (Product Discontinuation PD_26_161_01, issued 2026-09-11: last order date 2027-03-15, last delivery date 2027-09-15). Infineon lists no direct replacement for this part. USComponent can still source the original TDB6HK180N22RRP_B81.
