TD520N22KOF_TIM Infineon - Thyristor / Diode Module

Also written as: TD520N22KOF-TIM

Category: Thyristor & SCR Modules

Specifications: 2200V, 520A

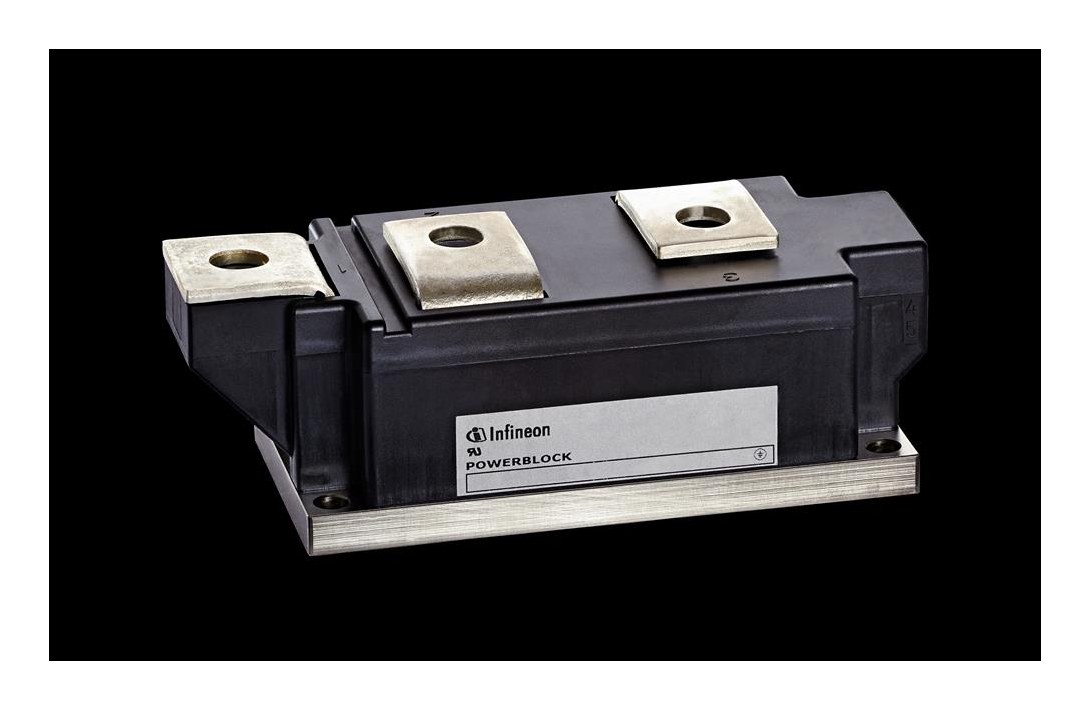

TD520N22KOF_TIM Infineon Thyristor / Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

TD520N22KOF_TIM Description

TD520N22KOF_TIM is a 2200 V / 520 A thyristor / diode thyristor module from Infineon Technologies. Typical applications: soft starter, Rectifier for drives applications, Crowbar applications, Power controllers, Rectifiers for UPS, Battery chargers.

USComponent supplies TD520N22KOF_TIM and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Infineon TD520N22KOF_TIM is used for Soft starter, Rectifier for drives applications, Crowbar applications, Power controllers, Rectifiers for UPS, Battery chargers.

Key Specifications

TD520N22KOF_TIM is a 2200 V / 520 A thyristor / diode thyristor module from Infineon Technologies (60 mm base plate module). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeThyristor module
ConfigurationThyristor / diode
Repetitive peak voltage (VDRM / VRRM)2200 V
Average on-state current (ITAVM)520 A
Package60 mm base plate module
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for TD520N22KOF_TIM (reply within 24 hours)
