TD25N06KOFInfineon - SCR

TD25N06KOF Description

Infineon Technologies TD25N06KOF is a thyristor module rated at 600 V and 250 A. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TD25N06KOF.

Target Applications

Infineon TD25N06KOF is used for High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply, Inverter for motor drive.

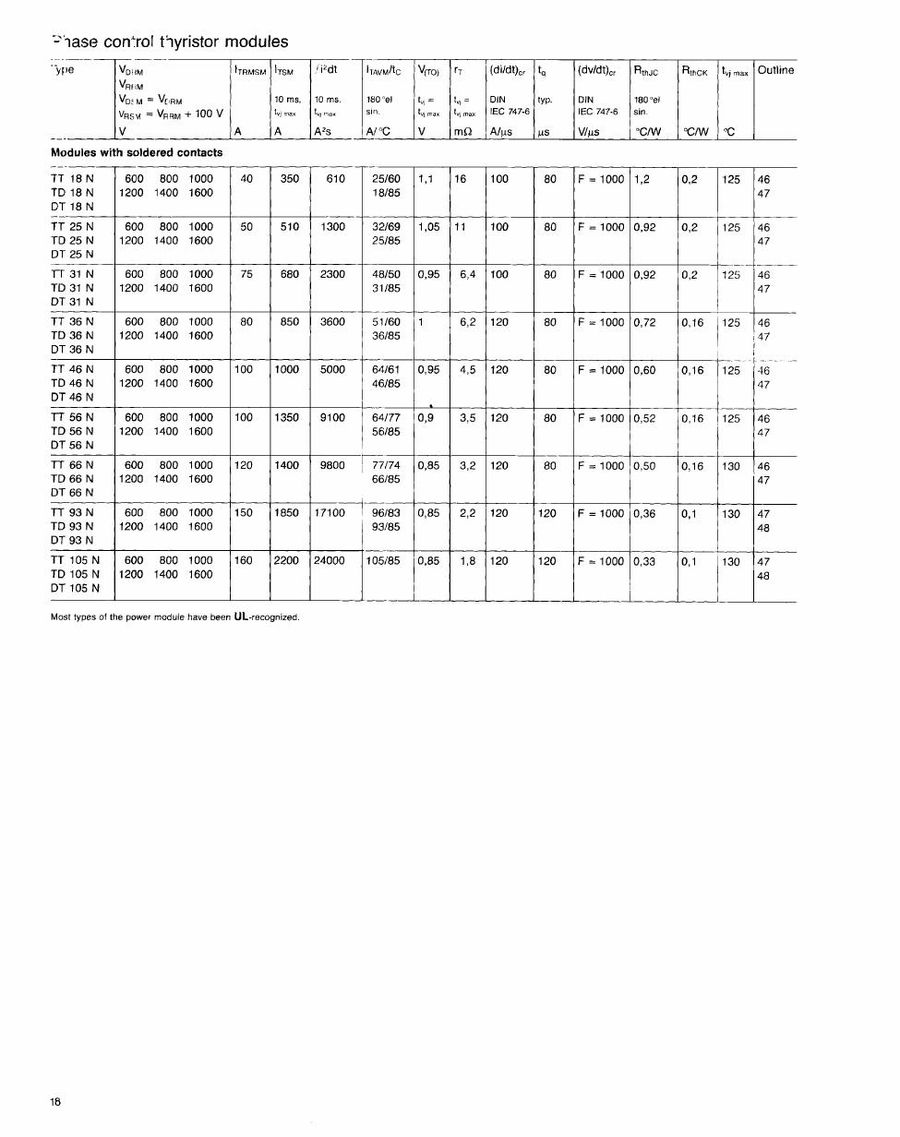

Key Specifications

Manufacturer	Infineon Technologies (eupec)
Configuration	Phase control thyristor / diode module (TD: one thyristor + one diode), soldered contacts
VDRM / VRRM	600 V
ITAVM	25 A (TC = 85 °C) / 32 A (TC = 69 °C)
ITRMSM	50 A
ITSM	510 A (10 ms, Tvj max)
I²t	1300 A²s
Threshold voltage VT(TO) / slope resistance rT	1.05 V / 11 mΩ
Critical di/dt	100 A/µs
Critical dv/dt	1000 V/µs
Turn-off time tq typ.	80 µs
Junction temperature	125 °C max.
