TD250N18KOF Infineon - Thyristor Module

TD250N18KOF Description

TD250N18KOF is a phase control thyristor / diode module (TD250N) from Infineon (eupec / IFBIP), rated 1800V, 250A. Typical applications: Soft starter, rectifier for drives applications, crowbar applications, power controllers, rectifiers for UPS, battery chargers and static switches.

USComponent supplies TD250N18KOF and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon TD250N18KOF is used for Soft starter, rectifier for drives applications, crowbar applications, power controllers, rectifiers for UPS, battery chargers and static switches.

Key Specifications

TD250N18KOF is a phase control thyristor / diode module (TD250N) from Infineon (eupec / IFBIP), rated 1800V, 250A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Infineon (eupec / IFBIP)
Repetitive peak off-state / reverse voltage VDRM, VRRM	1800 V
Non-repetitive peak reverse voltage VRSM	1900 V
Average on-state current ITAVM	250 A (TC = 85 °C)
Max. RMS on-state current ITRMSM	410 A
Surge current ITSM (10 ms, 25 °C / Tvj max)	9100 A / 8000 A
I²t (10 ms, 25 °C)	414 000 A²s
On-state voltage vT max. (800 A, Tvj max)	1.4 V
Critical rate of rise of off-state voltage	1000 V/µs (6th letter F)
Base plate / weight	50 mm / 800 g

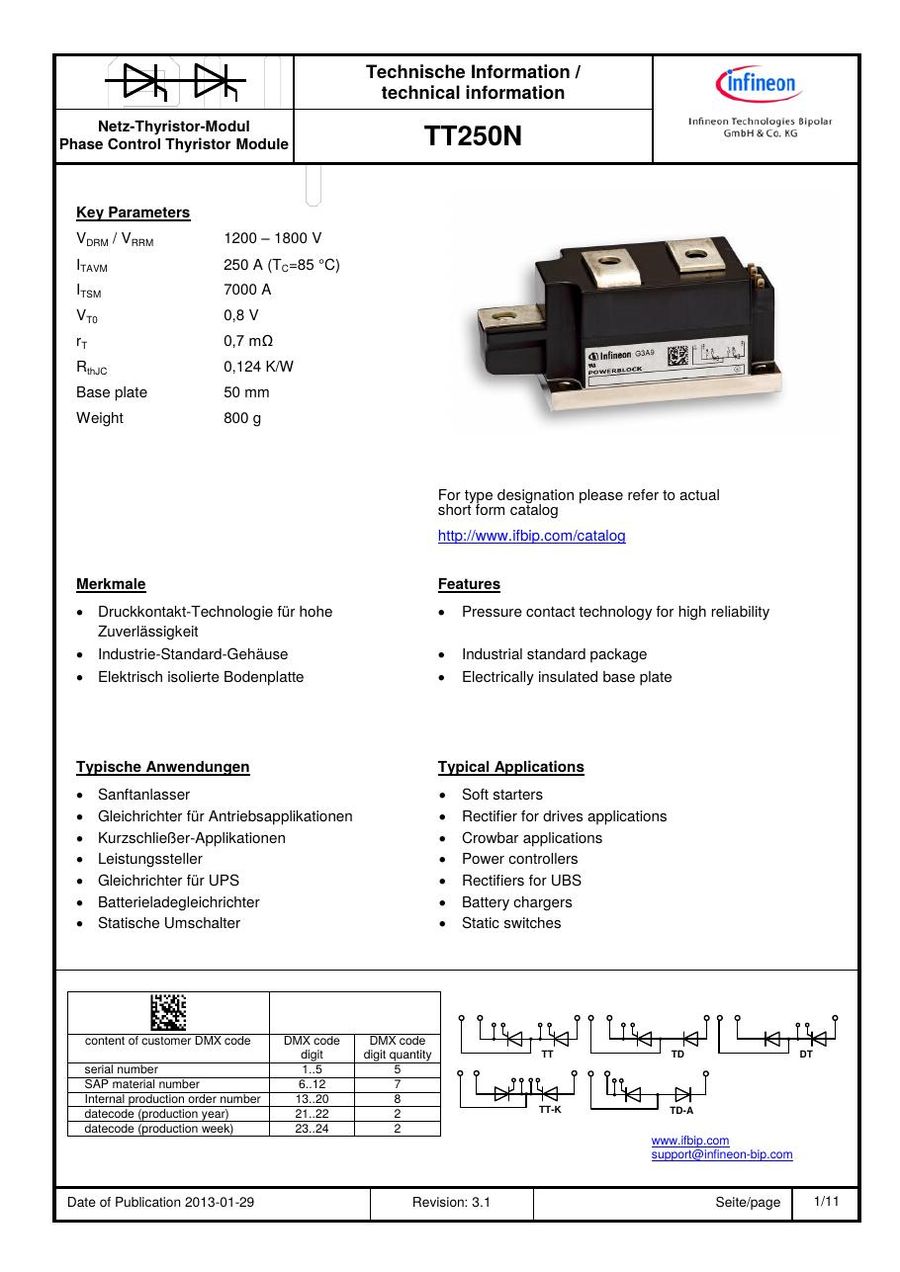

Datasheet	Available on this page (PDF)

Note: data taken from the Infineon (eupec / IFBIP) datasheet of TT250N / TD250N series, which covers TD250N18KOF.
