T590N16TOFInfineon - SCR

T590N16TOF Description

T590N16TOF is a power module designed for use in high-power switching applications. It consists of two insulated-gate bipolar transistors (IGBTs) and a diode in a half-bridge configuration. The module has a maximum voltage rating of 1600 volts and a maximum current rating of 590 amps. The IGBTs in the T590N16TOF are designed to handle high current and high voltage loads, making it suitable for use in applications such as motor drives, power inverters, and welding equipment. The diode is designed to provide efficient and reliable rectification of AC to DC voltage. The module features an industry-standard package and is designed for easy installation and maintenance. It has a compact design and low thermal resistance, which allows for efficient heat dissipation and helps to prolong the lifespan of the module. Overall, the T590N16TOF is a reliable and efficient power module that is suitable for use in a variety of high-power switching applications. It provides high performance and high reliability in a compact package, making it an ideal choice for many industrial and commercial applications.

Summary of Features

Target Applications

Infineon T590N16TOF is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

T590N16TOF is a 1,600 V, 590 A phase control thyristor (disc). Source: manufacturer datasheet.

Parameter	Value
Product type	Phase control thyristor (disc)
Repetitive peak voltage (VDRM / VRRM)	1,600 V
Rated on-state current	590 A
Datasheet	Available on this page (PDF)

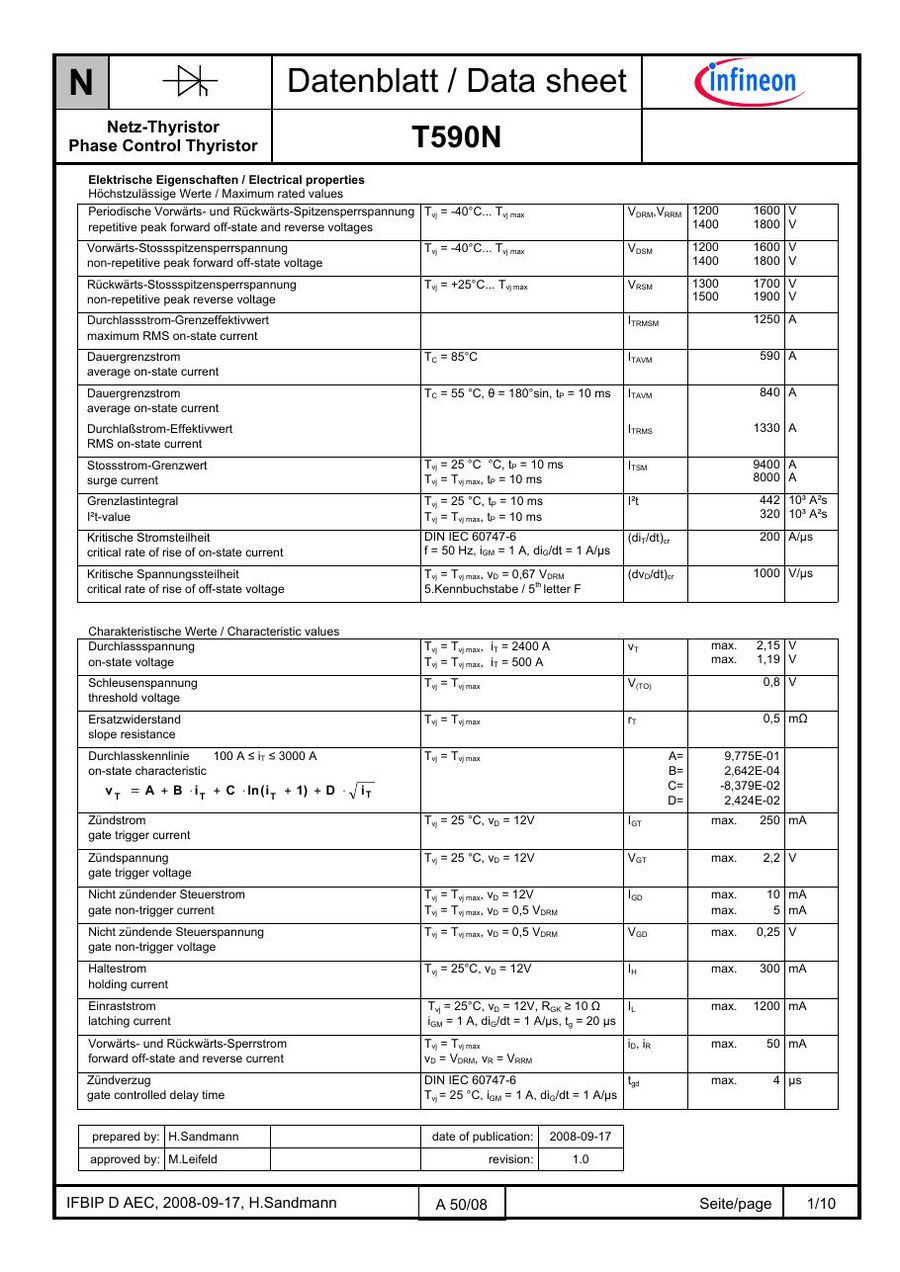

Download T590N16TOF Datasheet

T590N16TOF PDF Datasheet
