T1869N22TOF Infineon - Thyristor

T1869N22TOF Description

The Infineon Technologies T1869N22TOF is a thyristor (SCR), rated for 2200 V and 1869 A. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the T1869N22TOF, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon T1869N22TOF is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

T1869N22TOF is a 2,200 V, 1869 A phase control thyristor (disc). Source: manufacturer datasheet.

Parameter	Value
Product type	Phase control thyristor (disc)
Repetitive peak voltage (VDRM / VRRM)	2,200 V
Rated on-state current	1869 A

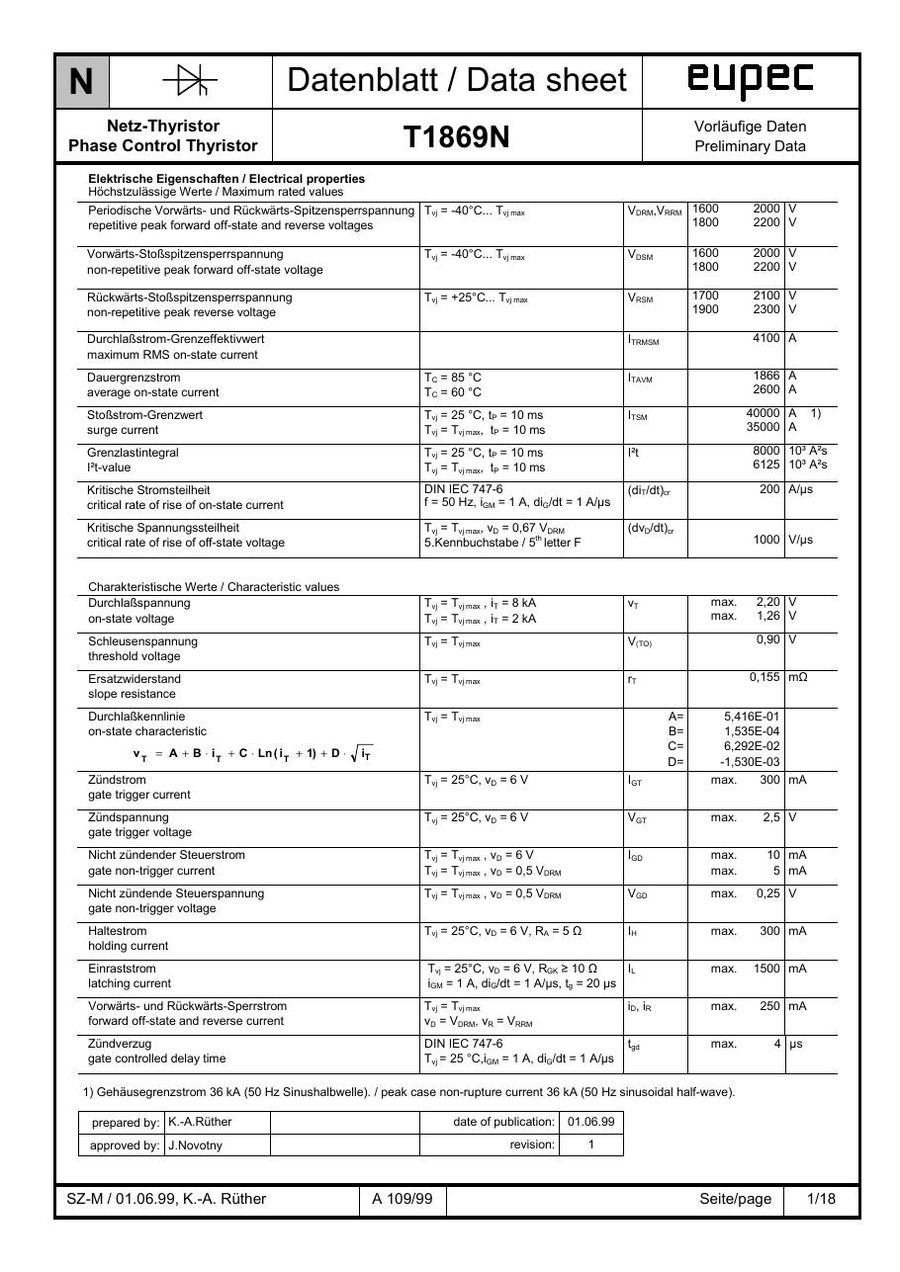

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for T1869N22TOF (reply within 24 hours)
